15 Series 1" Horizontal Stanchion Quick Clamp
15 Series 1" Horizontal Stanchion Quick Clamp

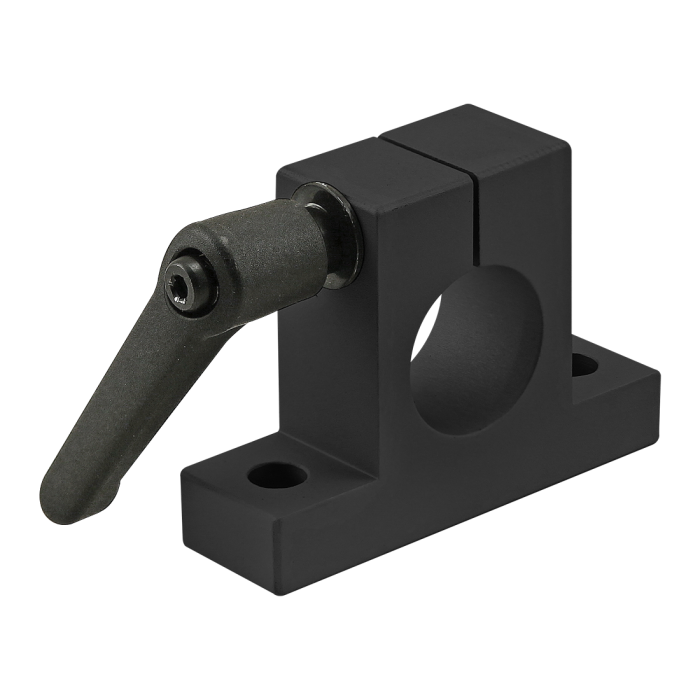

The horizontal stanchion quick clamp is commonly used with the aluminum tube profile to create an additional axis. The tube extends parallel from both sides of the mounted base. The clamp includes a black nylon racheting handle that enables easy positioning and repositioning.
| ESD Safe | Yes |
| Series | 15 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Black |
| Process | Milled |
| A | .875" |
| B | .438" |
| C | 3.000" |
| D | .375" |
| E | 2.250" |
| F | .328" |
| G | .313" |
| H | .438" |
| J | 1/4-20 |
| K | 2.125" |
| L | .500" |
| M | 1.062" |
| N | 1.500" |
| P | .750" |
| Q | 1.004" |
| Weight | 0.299000 |
The horizontal stanchion quick clamp is commonly used with the aluminum tube profile to create an additional axis. The tube extends parallel from both sides of the mounted base. The clamp includes a black nylon racheting handle that enables easy positioning and repositioning.
Stanchion to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3470 | 2 | Bolt Assembly: 5/16-18 x 1.000" Black SHCS with Washer and Slide-In Economy T-Nut - Offset Thread - Black Zinc |
Product Specs
- Product Details
-
ESD Safe Yes Series 15 Series Material Aluminum Grade 6063-T6 Finish Anodize Color Black Process Milled A .875" B .438" C 3.000" D .375" E 2.250" F .328" G .313" H .438" J 1/4-20 K 2.125" L .500" M 1.062" N 1.500" P .750" Q 1.004" Weight 0.299000
-
- Description
The horizontal stanchion quick clamp is commonly used with the aluminum tube profile to create an additional axis. The tube extends parallel from both sides of the mounted base. The clamp includes a black nylon racheting handle that enables easy positioning and repositioning.
-
Sugg. Hardware
Stanchion to T-Slot
Series Part Number Qty Description 3470 2 Bolt Assembly: 5/16-18 x 1.000" Black SHCS with Washer and Slide-In Economy T-Nut - Offset Thread - Black Zinc
-
