Product Specs

• Product Details
  •

    Series	Fractional
    Material	Aluminum
    Grade	6105-T5
    Finish	Anodize
    Color	Black
    Process	Milled
    A	1.500"
    B	.750"
    C	3.375"
    D	.250"
    E	.125"
    F	1.000"
    G	1.500"
    H	1.004"
    J	1/4-20
    Weight	0.577000

• Description

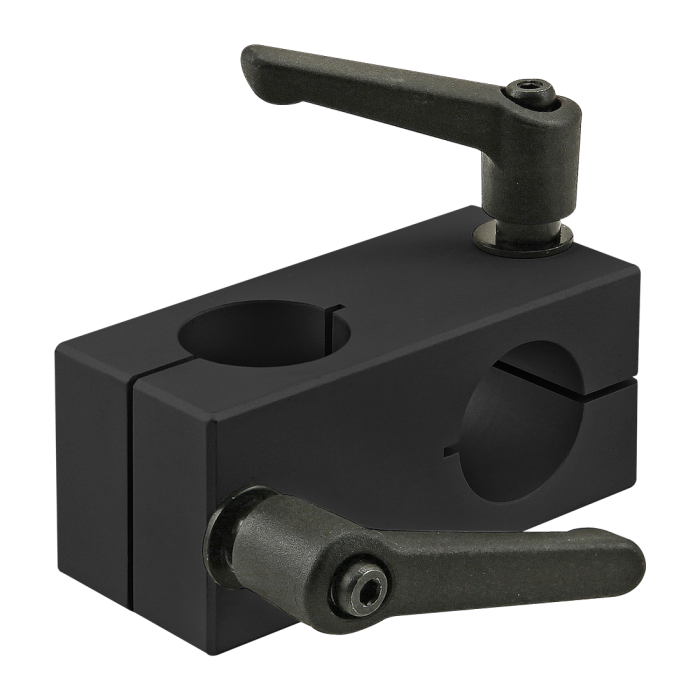

  • The quick stanchion cross clamp is commonly used with the aluminum tube profile to create two custom axes that are perpendicular to each other . It includes two black nylon racheting handles that enable easy positioning and repositioning. The stanchion cross clamp is aluminum, making it a strong and durable option.
