15 Series 1" Single Shaft Stanchion Base
15 Series 1" Single Shaft Stanchion Base

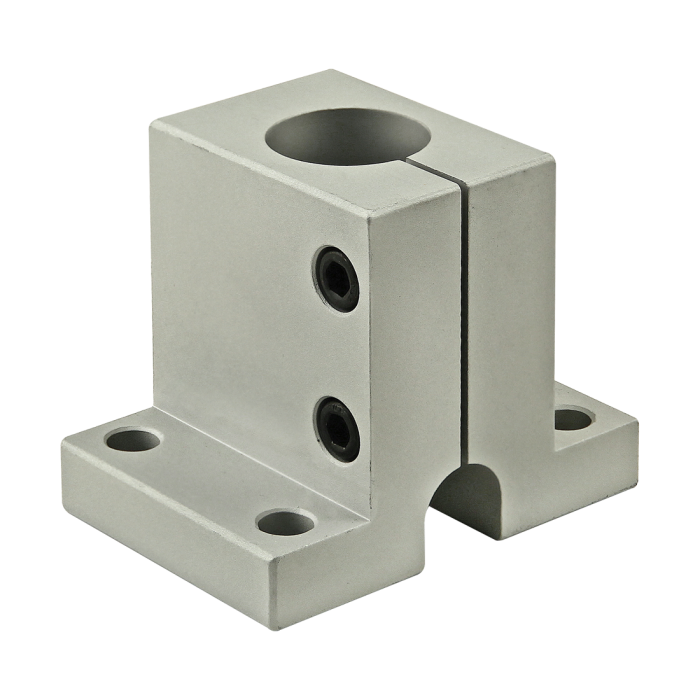

The single shaft stanchion base is commonly used with the aluminum tube profile to create an additional axis. The tube connects parallel to the mounted base, and there is a clearance channel for running wires or cables. The base is aluminum, making it a strong and durable option. Clamp screws are included. The suggested hardware to mount the base to a T-slot can be found on the "Suggested Hardware" tab.
The single shaft stanchion base is commonly used with the aluminum tube profile to create an additional axis. The tube connects parallel to the mounted base, and there is a clearance channel for running wires or cables. The base is aluminum, making it a strong and durable option. Clamp screws are included. The suggested hardware to mount the base to a T-slot can be found on the "Suggested Hardware" tab.
....................................................................................................................................................................................................................................................
Total Price
$56.20| Series | 15 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| Process | Milled |
| A | .312" |
| B | 1.500" |
| C | 3.000" |
| D | .375" |
| E | 2.250" |
| F | 2.125" |
| G | 1.063" |
| H | 1.004" |
| J | .328" |
| K | 1.500" |
| L | .990" |
| M | .520" |
| N | .312" |
| P | 1/4-20 SHCS |
| Q | 2.500" |
| R | .500" |
| S | 1.500" |
| T | .620" |
| U | .620" |
| Weight | 0.705000 |
The single shaft stanchion base is commonly used with the aluminum tube profile to create an additional axis. The tube connects parallel to the mounted base, and there is a clearance channel for running wires or cables. The base is aluminum, making it a strong and durable option. Clamp screws are included. The suggested hardware to mount the base to a T-slot can be found on the "Suggested Hardware" tab.
Stanchion to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 3470 | 4 | Bolt Assembly: 5/16-18 x 1.000" Black SHCS with Washer and Slide-In Economy T-Nut - Offset Thread - Black Zinc |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 15 Series Material Aluminum Grade 6105-T5 Finish Anodize Color Clear Process Milled A .312" B 1.500" C 3.000" D .375" E 2.250" F 2.125" G 1.063" H 1.004" J .328" K 1.500" L .990" M .520" N .312" P 1/4-20 SHCS Q 2.500" R .500" S 1.500" T .620" U .620" Weight 0.705000
-
- Description
The single shaft stanchion base is commonly used with the aluminum tube profile to create an additional axis. The tube connects parallel to the mounted base, and there is a clearance channel for running wires or cables. The base is aluminum, making it a strong and durable option. Clamp screws are included. The suggested hardware to mount the base to a T-slot can be found on the "Suggested Hardware" tab.
-
Sugg. Hardware
Stanchion to T-Slot
Series Part Number Qty Description Select Qty / Add To Cart 3470 4 Bolt Assembly: 5/16-18 x 1.000" Black SHCS with Washer and Slide-In Economy T-Nut - Offset Thread - Black Zinc
- How To
- CAD Files
-
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
-
