10 Series 1" Single Shaft Stanchion Base
10 Series 1" Single Shaft Stanchion Base

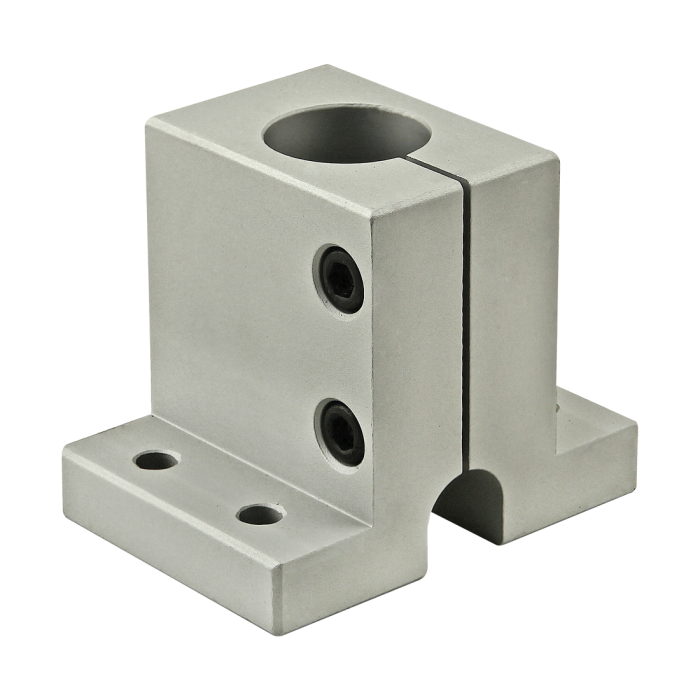

The single shaft stanchion base is commonly used with the aluminum tube profile to create an additional axis. The tube connects parallel to the mounted base, and there is a clearance channel for running wires or cables. The base is aluminum, making it a strong and durable option. Clamp screws are included. The suggested hardware to mount the base to a T-slot can be found on the "Suggested Hardware" tab.
The single shaft stanchion base is commonly used with the aluminum tube profile to create an additional axis. The tube connects parallel to the mounted base, and there is a clearance channel for running wires or cables. The base is aluminum, making it a strong and durable option. Clamp screws are included. The suggested hardware to mount the base to a T-slot can be found on the "Suggested Hardware" tab.
....................................................................................................................................................................................................................................................
Total Price
$56.20| Series | 10 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| Process | Milled |
| A | .563" |
| B | 1.000" |
| C | 3.000" |
| D | .375" |
| E | 2.250" |
| F | 2.125" |
| G | 1.063" |
| H | 1.004" |
| J | .257" |
| K | 1.500" |
| L | .990" |
| M | .520" |
| N | .312" |
| P | 1/4-20 SHCS |
| Q | 2.500" |
| R | .500" |
| S | 1.500" |
| T | .620" |
| U | .620" |
| Weight | 0.714000 |
The single shaft stanchion base is commonly used with the aluminum tube profile to create an additional axis. The tube connects parallel to the mounted base, and there is a clearance channel for running wires or cables. The base is aluminum, making it a strong and durable option. Clamp screws are included. The suggested hardware to mount the base to a T-slot can be found on the "Suggested Hardware" tab.
Stanchion to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 3471 | 4 | Bolt Assembly: 1/4-20 x .875" Black SHCS with Washer and Slide-In Economy T-Nut - Centered Thread - Black Zinc |
