45-8231

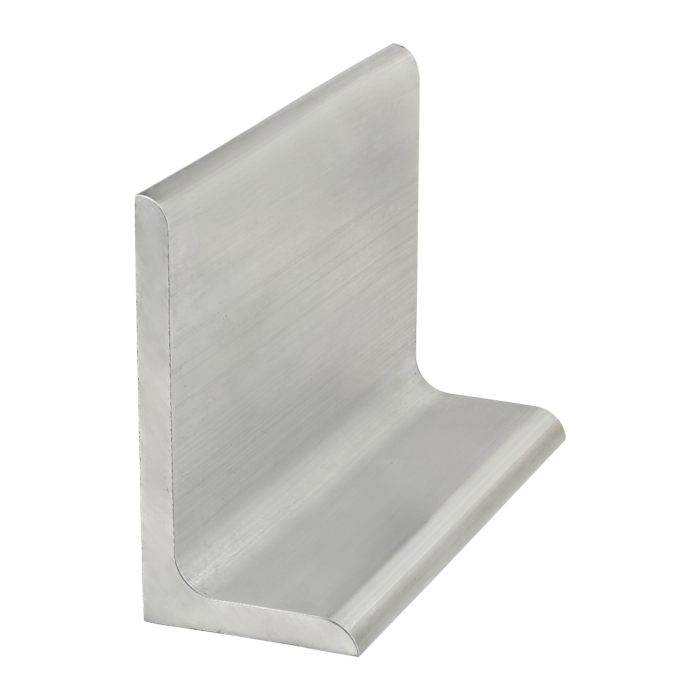

Angle Profile: 90.00mm x 45.00mm x 6.00mm
Angle Profile: 90.00mm x 45.00mm x 6.00mm
The angle profile can be cut to your desired length. There are options available in a clear or black anodize finish. The angle profile is commonly used for custom corner brackets, part bin supports, and tool hangers. Additional Information: This product is available up to 4M (157.48") but for on-line orders, this product is only available up to 2.59M (102").
....................................................................................................................................................................................................................................................
Price Per Inch
$0.57The angle profile can be cut to your desired length. There are options available in a clear or black anodize finish. The angle profile is commonly used for custom corner brackets, part bin supports, and tool hangers. Additional Information: This product is available up to 4M (157.48") but for on-line orders, this product is only available up to 2.59M (102").
....................................................................................................................................................................................................................................................
Total Price
$0.57| Series | Metric |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Mill |
| Color | Natural |
| Process | Extruded |
| Stock Length | 4M |
| A | 90.00mm |
| B | 6.00mm |
| C | 6.00mm |
| D | 6.00mm |
| E | 45.00mm |
| Weight | 0.2632 |
The angle profile can be cut to your desired length. There are options available in a clear or black anodize finish. The angle profile is commonly used for custom corner brackets, part bin supports, and tool hangers. Additional Information: This product is available up to 4M (157.48") but for on-line orders, this product is only available up to 2.59M (102").
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series Metric Material Aluminum Grade 6105-T5 Finish Mill Color Natural Process Extruded Stock Length 4M A 90.00mm B 6.00mm C 6.00mm D 6.00mm E 45.00mm Weight 0.2632
-
- Description
The angle profile can be cut to your desired length. There are options available in a clear or black anodize finish. The angle profile is commonly used for custom corner brackets, part bin supports, and tool hangers. Additional Information: This product is available up to 4M (157.48") but for on-line orders, this product is only available up to 2.59M (102").
