45-6598

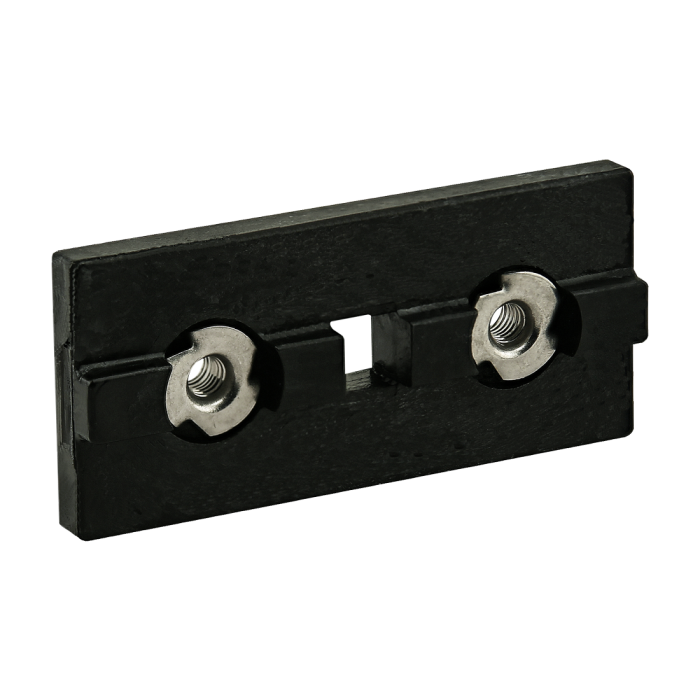

45 Series Single-Keyed Standard Linear Bearing Pad
45 Series Single-Keyed Standard Linear Bearing Pad
The single-keyed standard linear bearing pad is commonly used with bearings to create linear motion and is made of self-lubricating UHMW. It has a low coefficient of friction and is designed with rounded corners on the molded pad, allowing simple installation and replacement. This pad has a single key and mounts to the housing using steel flathead socket cap screws that have Loctite®. It comes with holes for mounting hardware or brake kits and includes nutserts.
....................................................................................................................................................................................................................................................
Price Per Inch
$3.09
....................................................................................................................................................................................................................................................
Total Price
$3.09The single-keyed standard linear bearing pad is commonly used with bearings to create linear motion and is made of self-lubricating UHMW. It has a low coefficient of friction and is designed with rounded corners on the molded pad, allowing simple installation and replacement. This pad has a single key and mounts to the housing using steel flathead socket cap screws that have Loctite®. It comes with holes for mounting hardware or brake kits and includes nutserts.
| Series | 45 Series |
| Material | UHMW PE |
| Process | Injection Molded |
| Finish | Smooth |
| Color | Black |
| A | 10.77mm |
| B | 78.00mm |
| C | 39.00mm |
| D | 16.50mm |
| E | 17.50mm |
| F | 10.00mm |
| G | 19.50mm |
| H | 10-32 |
| J | 45.00mm |
| K | 6.17mm |
| L | 14.63mm |
| M | 9.75mm |
| N | 12.29mm |
| Weight | 0.0370 |
The single-keyed standard linear bearing pad is commonly used with bearings to create linear motion and is made of self-lubricating UHMW. It has a low coefficient of friction and is designed with rounded corners on the molded pad, allowing simple installation and replacement. This pad has a single key and mounts to the housing using steel flathead socket cap screws that have Loctite®. It comes with holes for mounting hardware or brake kits and includes nutserts.
Mount Pad to Bearing Housing
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 3022 | 2 | 10-32 x .500" Flat Head Socket Cap Screw (FHSCS) |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 45 Series Material UHMW PE Process Injection Molded Finish Smooth Color Black A 10.77mm B 78.00mm C 39.00mm D 16.50mm E 17.50mm F 10.00mm G 19.50mm H 10-32 J 45.00mm K 6.17mm L 14.63mm M 9.75mm N 12.29mm Weight 0.0370
-
- Description
The single-keyed standard linear bearing pad is commonly used with bearings to create linear motion and is made of self-lubricating UHMW. It has a low coefficient of friction and is designed with rounded corners on the molded pad, allowing simple installation and replacement. This pad has a single key and mounts to the housing using steel flathead socket cap screws that have Loctite®. It comes with holes for mounting hardware or brake kits and includes nutserts.
-
Sugg. Hardware
Mount Pad to Bearing Housing
Series Part Number Qty Description Select Qty / Add To Cart 3022 2 10-32 x .500" Flat Head Socket Cap Screw (FHSCS)
