()45-4545-Lite-Black-FB

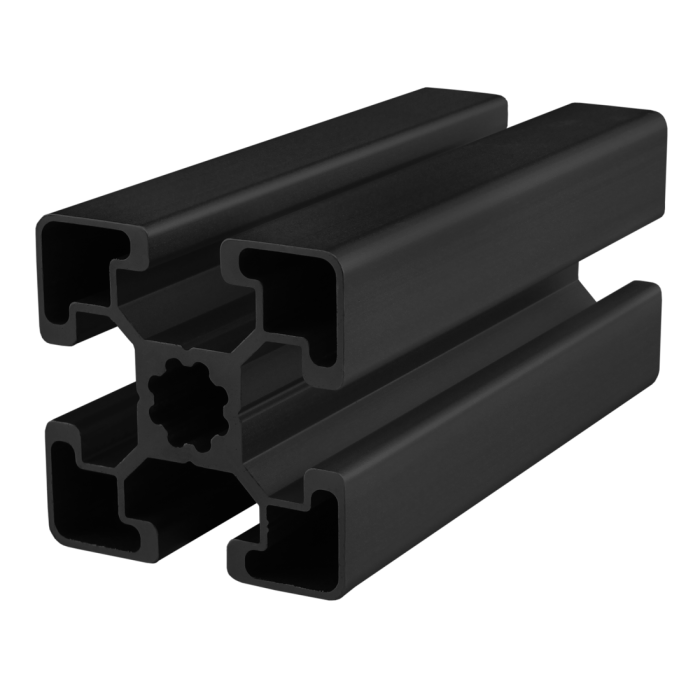

45mm X 45mm Lite T-Slotted Profile - Four Open T-Slots
45mm X 45mm Lite T-Slotted Profile - Four Open T-Slots
45-4545-Lite-Black-FB is a 45mm x 45mm lite metric 45 series square T-slot profile with four open T-slots, one on each 45mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 45-4545-Lite-Black-FB profile is compatible with all 45 series fasteners. This light profile lends itself to clean room applications, guards, enclosures, or workstations. The four open T-slots enable access from any direction and are useful for mounting accessories.
Price Per Millimeter
$0.045245-4545-Lite-Black-FB is a 45mm x 45mm lite metric 45 series square T-slot profile with four open T-slots, one on each 45mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 45-4545-Lite-Black-FB profile is compatible with all 45 series fasteners. This light profile lends itself to clean room applications, guards, enclosures, or workstations. The four open T-slots enable access from any direction and are useful for mounting accessories.
-
End Taps
-
Counterbores
-
Access Holes
-
Mitercuts
No Applied Machining
- Single Hole End Tap
M12 x 1.75 D x 38.10mm ↧
Price: $3.45 - Single Hole End Tap
1/2-13 D x 38.10mm ↧
Price: $3.45
- 45-7248
45-7248 | Price: $2.79
- 0° to 75° Mitercut
Price: $4.93
Counterbore
See here for details
In stock
Total Price
................................................................................................................................Max Length (inches) | 238.188976 |
Series | 45 Series |
Material | Aluminum |
Grade | 6005A – T61 |
Finish | Anodize |
Color | Black |
Drop Lock | N/A |
Moment of Inertia - IX | 9.2029 cm⁴ |
Moment of Inertia - IY | 9.2029 cm⁴ |
Surface Area | 5.167 Sq cm |
Yield Strength | 241.1 N/ Sq. mm |
Modulus of Elasticity | 70,326.5 N/Sq. mm |
Weight lbs | 0.0781 per inch |
Weight | 0.078100 |
45-4545-Lite-Black-FB is a 45mm x 45mm lite metric 45 series square T-slot profile with four open T-slots, one on each 45mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 45-4545-Lite-Black-FB profile is compatible with all 45 series fasteners. This light profile lends itself to clean room applications, guards, enclosures, or workstations. The four open T-slots enable access from any direction and are useful for mounting accessories.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Max Length (inches) 238.188976 Series 45 Series Material Aluminum Grade 6005A – T61 Finish Anodize Color Black Drop Lock N/A Moment of Inertia - IX 9.2029 cm^4 Moment of Inertia - IY 9.2029 cm^4 Surface Area 5.167 Sq cm Yield Strength 241.1 N/ Sq. mm Modulus of Elasticity 70,326.5 N/Sq. mm Weight lbs 0.0781 per inch Weight 0.078100
-
- Description
45-4545-Lite-Black-FB is a 45mm x 45mm lite metric 45 series square T-slot profile with four open T-slots, one on each 45mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 45-4545-Lite-Black-FB profile is compatible with all 45 series fasteners. This light profile lends itself to clean room applications, guards, enclosures, or workstations. The four open T-slots enable access from any direction and are useful for mounting accessories.
