40-8545

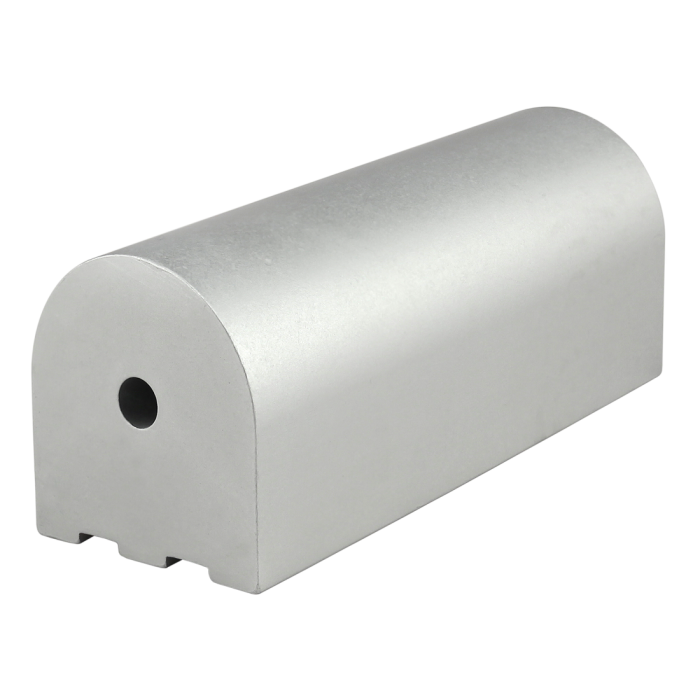

Standard Nub Profile - Metric
Standard Nub Profile - Metric
The standard nub profile can be cut to your desired length. There are options available in a mill or black anodize finish. It is commonly used for custom pivot nubs and assemblies. Additional Information: This product is available up to 4M (157.48") but for on-line orders, this product is only available up to 2.59M (102").
....................................................................................................................................................................................................................................................
Price Per Inch
$1.07
*surcharge of $2.11 per cut
The standard nub profile can be cut to your desired length. There are options available in a mill or black anodize finish. It is commonly used for custom pivot nubs and assemblies. Additional Information: This product is available up to 4M (157.48") but for on-line orders, this product is only available up to 2.59M (102").
In stock
....................................................................................................................................................................................................................................................
Total Price
$1.07| Series | Metric |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| Process | Extruded |
| A | 40.00mm |
| B | 42.50mm |
| C | 20.00mm |
| D | 8.00mm |
| E | 2.13mm |
| F | 8.00mm |
| G | 20.00mm |
| H | 6.60mm |
| Weight | 0.220000 |
The standard nub profile can be cut to your desired length. There are options available in a mill or black anodize finish. It is commonly used for custom pivot nubs and assemblies. Additional Information: This product is available up to 4M (157.48") but for on-line orders, this product is only available up to 2.59M (102").
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series Metric Material Aluminum Grade 6105-T5 Finish Anodize Color Clear Process Extruded A 40.00mm B 42.50mm C 20.00mm D 8.00mm E 2.13mm F 8.00mm G 20.00mm H 6.60mm Weight 0.220000
-
- Description
The standard nub profile can be cut to your desired length. There are options available in a mill or black anodize finish. It is commonly used for custom pivot nubs and assemblies. Additional Information: This product is available up to 4M (157.48") but for on-line orders, this product is only available up to 2.59M (102").
