40-6898

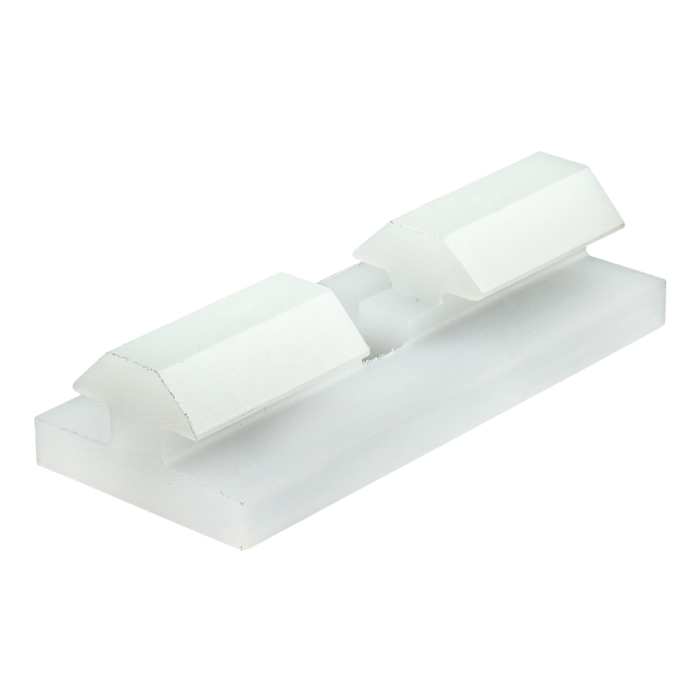

40 Series T-Slot Insert Linear Bearing Pad
40 Series T-Slot Insert Linear Bearing Pad
The T-slot insert linear bearing pad is commonly used with bearings to create linear motion and is made of self-lubricating white UHMW. It has a low coefficient of friction and is designed with rounded corners on the extruded pad, allowing simple installation and replacement. This pad is designed to slide into, and stabilize within, the T-slot. It comes with holes for mounting hardware and brake kits.
The T-slot insert linear bearing pad is commonly used with bearings to create linear motion and is made of self-lubricating white UHMW. It has a low coefficient of friction and is designed with rounded corners on the extruded pad, allowing simple installation and replacement. This pad is designed to slide into, and stabilize within, the T-slot. It comes with holes for mounting hardware and brake kits.
| ESD Safe | No |
| Series | 40 Series |
| Material | UHMW PE |
| Process | Extruded |
| Finish | Smooth |
| Color | Natural |
| A | 31.75mm |
| B | 11.91mm |
| C | 7.92mm |
| D | 9.27mm |
| E | 17.30mm |
| F | 10.49mm |
| G | 5.55mm |
| H | 7.92mm |
| J | 15.88mm |
| K | 3.18mm |
| L | 40.00mm |
| M | 17.78mm |
| N | 75.00mm |
| P | 19.05mm |
| Q | 9.14mm |
| R | 6.10mm |
| S | 4.95mm |
| T | 7.62mm |
| U | 45º |
| V | 7.62mm |
| Weight | 0.043000 |
The T-slot insert linear bearing pad is commonly used with bearings to create linear motion and is made of self-lubricating white UHMW. It has a low coefficient of friction and is designed with rounded corners on the extruded pad, allowing simple installation and replacement. This pad is designed to slide into, and stabilize within, the T-slot. It comes with holes for mounting hardware and brake kits.
Mount Pad to Bearing Housing
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 40-3628 | 2 | 40 Series Bearing Pad Screw |
Product Specs
- Product Details
-
ESD Safe No Series 40 Series Material UHMW PE Process Extruded Finish Smooth Color Natural A 31.75mm B 11.91mm C 7.92mm D 9.27mm E 17.30mm F 10.49mm G 5.55mm H 7.92mm J 15.88mm K 3.18mm L 40.00mm M 17.78mm N 75.00mm P 19.05mm Q 9.14mm R 6.10mm S 4.95mm T 7.62mm U 45º V 7.62mm Weight 0.043000
-
- Description
The T-slot insert linear bearing pad is commonly used with bearings to create linear motion and is made of self-lubricating white UHMW. It has a low coefficient of friction and is designed with rounded corners on the extruded pad, allowing simple installation and replacement. This pad is designed to slide into, and stabilize within, the T-slot. It comes with holes for mounting hardware and brake kits.
-
Sugg. Hardware
Mount Pad to Bearing Housing
Series Part Number Qty Description 40-3628 2 40 Series Bearing Pad Screw
-
