40-6893

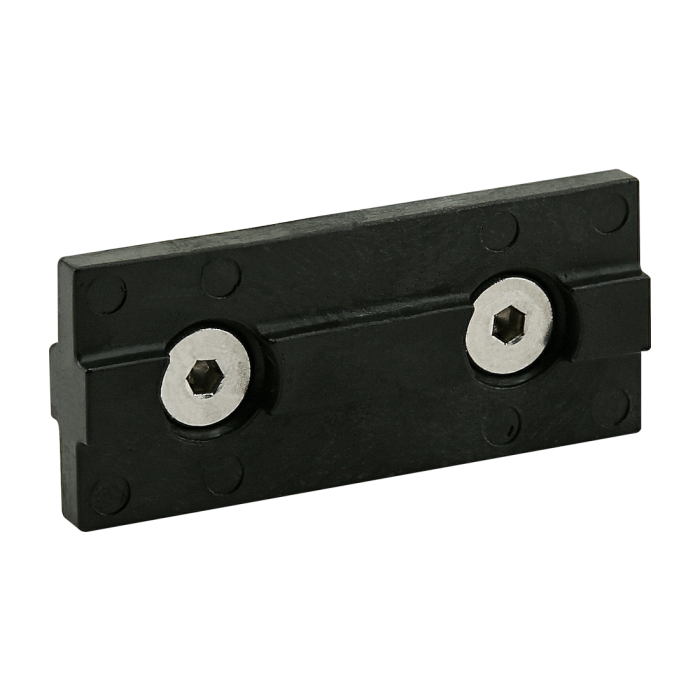

40 Series Double-Keyed UniBearing™ Pad
40 Series Double-Keyed UniBearing™ Pad
The double-keyed UniBearing™ pad is commonly used with a UniBearing™ to create custom bearings. It has a double key and mounts to the profile using stainless steel flathead socket cap screws. It provides a flat bearing and quick change-out as well as being designed with rounded corners on the molded pad for easy installation.
The double-keyed UniBearing™ pad is commonly used with a UniBearing™ to create custom bearings. It has a double key and mounts to the profile using stainless steel flathead socket cap screws. It provides a flat bearing and quick change-out as well as being designed with rounded corners on the molded pad for easy installation.
| ESD Safe | No |
| Series | 40 Series |
| Material | UHMW PE |
| Process | Injection Molded |
| Finish | Smooth |
| Color | Black |
| A | 31.75mm |
| B | 15.88mm |
| C | 17.06mm |
| D | 40.00mm |
| E | 6.55mm |
| F | 13.03mm |
| G | 74.12mm |
| H | 6.17mm |
| J | 11.91mm |
| K | 7.92mm |
| L | 3.43mm |
| Weight | 0.070000 |
The double-keyed UniBearing™ pad is commonly used with a UniBearing™ to create custom bearings. It has a double key and mounts to the profile using stainless steel flathead socket cap screws. It provides a flat bearing and quick change-out as well as being designed with rounded corners on the molded pad for easy installation.
Product Specs
- Product Details
-
ESD Safe No Series 40 Series Material UHMW PE Process Injection Molded Finish Smooth Color Black A 31.75mm B 15.88mm C 17.06mm D 40.00mm E 6.55mm F 13.03mm G 74.12mm H 6.17mm J 11.91mm K 7.92mm L 3.43mm Weight 0.070000
-
- Description
- The double-keyed UniBearing™ pad is commonly used with a UniBearing™ to create custom bearings. It has a double key and mounts to the profile using stainless steel flathead socket cap screws. It provides a flat bearing and quick change-out as well as being designed with rounded corners on the molded pad for easy installation.
-
