()40-6525

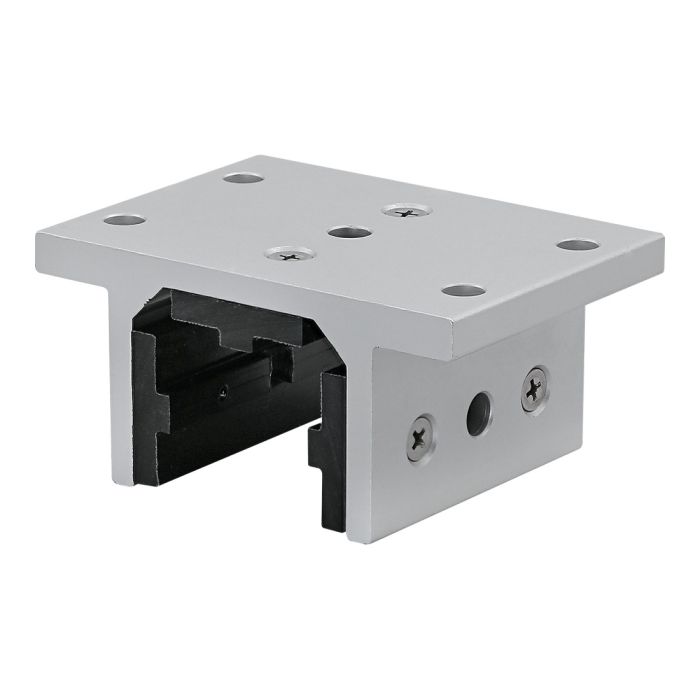

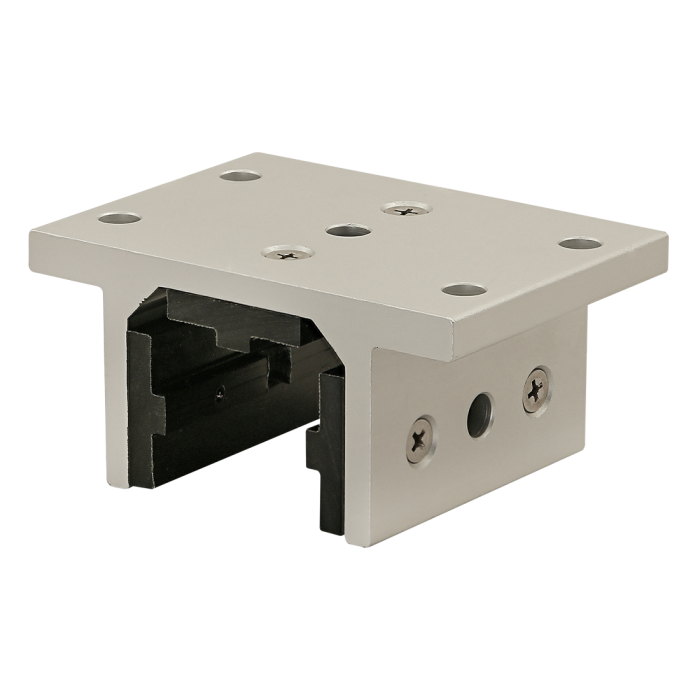

40 Series 3 Slot Mount - Double Flange Short Standard Linear Bearing with Brake Holes
40 Series 3 Slot Mount - Double Flange Short Standard Linear Bearing with Brake Holes
The 3-slot mount – double flange short standard linear bearing with brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a double flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
The 3-slot mount – double flange short standard linear bearing with brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a double flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
Total Price
................................................................................................................................Series | 40 Series |
Material | Aluminum |
Grade | 6063-T6 |
Process | Extruded |
Finish | Anodize |
Color | Clear |
A | 50.00mm |
B | 9.00mm |
C | 41.00mm |
D | 2.58mm |
E | 65.12mm |
F | 6.15mm |
G | 52.82mm |
H | 12.32mm |
J | 19.00mm |
K | 6.15mm |
L | 103.12mm |
M | 75.00mm |
N | 37.50mm |
P | 17.50mm |
Q | 9.50mm |
R | 51.56mm |
S | 40.00mm |
T | #10 FHS |
U | 8.71mm |
V | 8.33mm |
W | 84.12mm |
X | 40.00mm |
Y | 17.50mm |
Z | 17.42mm |
Weight | 0.687000 |

The 3-slot mount – double flange short standard linear bearing with brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a double flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
Product Specs
- Product Details
-
Series 40 Series Material Aluminum Grade 6063-T6 Process Extruded Finish Anodize Color Clear A 50.00mm B 9.00mm C 41.00mm D 2.58mm E 65.12mm F 6.15mm G 52.82mm H 12.32mm J 19.00mm K 6.15mm L 103.12mm M 75.00mm N 37.50mm P 17.50mm Q 9.50mm R 51.56mm S 40.00mm T #10 FHS U 8.71mm V 8.33mm W 84.12mm X 40.00mm Y 17.50mm Z 17.42mm Weight 0.687000
-
- Description
The 3-slot mount – double flange short standard linear bearing with brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a double flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
