40-4455-Black

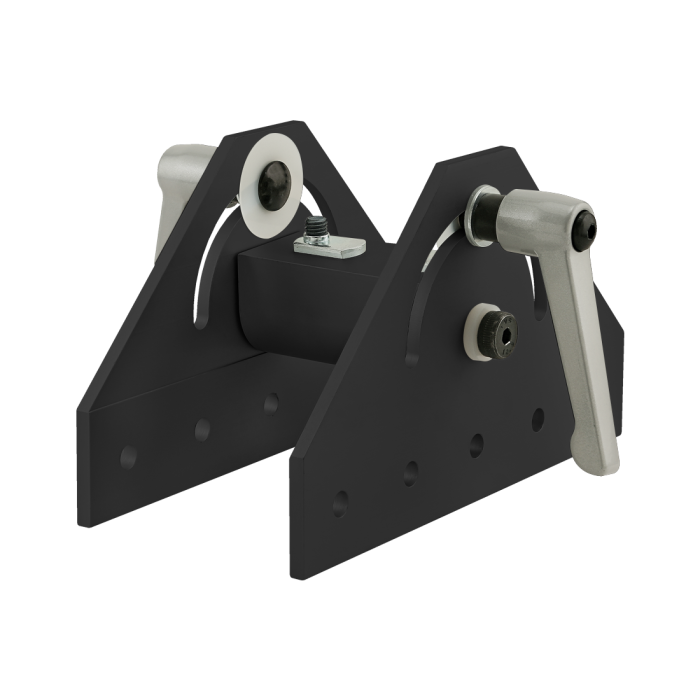

40 Series 180 Degree Wide Double Pivot Bracket Assembly with "L" Handle
40 Series 180 Degree Wide Double Pivot Bracket Assembly with "L" Handle
The 180 degree wide double pivot bracket assembly with "L" handle is commonly used to add motion to certain elements of your project. It is comprised of two 180 degree pivot brackets, two “L ” handles, and one universal structural pivot nub. The shoulder bolt and nylon thrust washers are also included. The brackets have permanently lubricated bronze bushings that act as high-strength pivot points.
The 180 degree wide double pivot bracket assembly with "L" handle is commonly used to add motion to certain elements of your project. It is comprised of two 180 degree pivot brackets, two “L ” handles, and one universal structural pivot nub. The shoulder bolt and nylon thrust washers are also included. The brackets have permanently lubricated bronze bushings that act as high-strength pivot points.
| ESD Safe | No |
| Series | 40 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Black |
| Plate (Qty.) | 40-4424 (2) |
| Nub (Qty.) | 40-4386 (1) |
| Handle (Qty.) | 40-2797 (2) |
| A | 89.03mm |
| B | 80.00mm |
| C | 207.06mm |
| D | 22.12mm |
| E | 120.00mm |
| F | 200.00mm |
| G | 8.48mm |
| H | 100.00mm |
| Weight | 2.571000 |
The 180 degree wide double pivot bracket assembly with "L" handle is commonly used to add motion to certain elements of your project. It is comprised of two 180 degree pivot brackets, two “L ” handles, and one universal structural pivot nub. The shoulder bolt and nylon thrust washers are also included. The brackets have permanently lubricated bronze bushings that act as high-strength pivot points.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 75-3422 | 10 | Bolt Assembly: M8 x 16.00mm Blue BHSCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc |
Product Specs
- Product Details
-
ESD Safe No Series 40 Series Material Aluminum Grade 6063-T6 Finish Anodize Color Black Plate (Qty.) 40-4424 (2) Nub (Qty.) 40-4386 (1) Handle (Qty.) 40-2797 (2) A 89.03mm B 80.00mm C 207.06mm D 22.12mm E 120.00mm F 200.00mm G 8.48mm H 100.00mm Weight 2.571000
-
- Description
The 180 degree wide double pivot bracket assembly with "L" handle is commonly used to add motion to certain elements of your project. It is comprised of two 180 degree pivot brackets, two “L ” handles, and one universal structural pivot nub. The shoulder bolt and nylon thrust washers are also included. The brackets have permanently lubricated bronze bushings that act as high-strength pivot points.
-
Sugg. Hardware
Mount to T-Slot
Series Part Number Qty Description 75-3422 10 Bolt Assembly: M8 x 16.00mm Blue BHSCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc
-
