40-4356

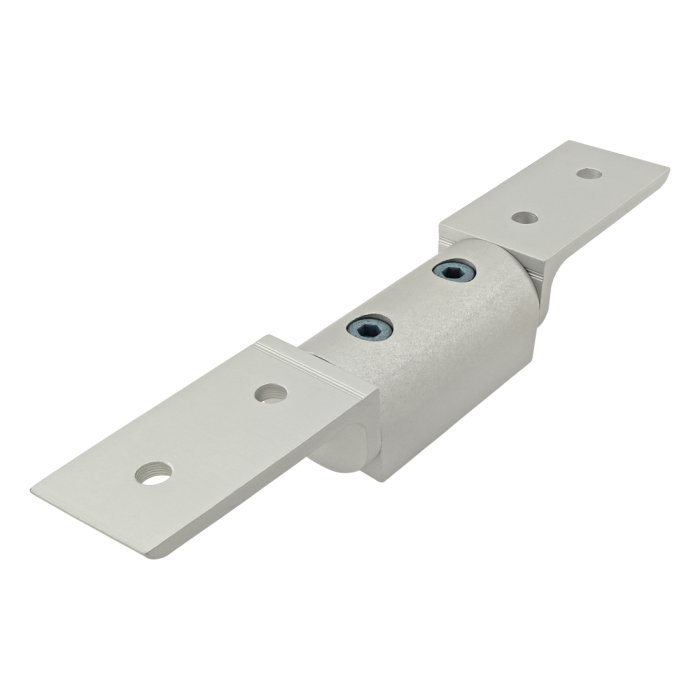

40 Series Universal Standard Structural Pivot Assembly with Dual "L" Arms
40 Series Universal Standard Structural Pivot Assembly with Dual "L" Arms
The standard structural pivot assembly with dual "L" arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two "L" structural pivot arms.
....................................................................................................................................................................................................................................................
Total Price
$20.75| Series | 40 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Process | Milled |
| Finish | Anodize |
| Color | Clear |
| Nub (Qty.) | 40-4386 (1) |
| Arm (Qty.) | 40-4349 (2) |
| A | 240.00mm |
| B | 20.00mm |
| C | 40.00mm |
| D | 40.00mm |
| E | 40.00mm |
| F | 51.33mm |
| Weight | 1.088000 |
The standard structural pivot assembly with dual "L" arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two "L" structural pivot arms.
Arm to Nub
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 13-8316 | 2 | M8 x 16.00mm Button Head Socket Cap Screw (BHSCS) |
Nub to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
| 75-3479 | 1 Or 2 | Bolt Assembly: M8 x 40.00mm Blue SHCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc |
Arm to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
| 75-3422 | 4 | Bolt Assembly: M8 x 16.00mm Blue BHSCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 40 Series Material Aluminum Grade 6105-T5 Process Milled Finish Anodize Color Clear Nub (Qty.) 40-4386 (1) Arm (Qty.) 40-4349 (2) A 240.00mm B 20.00mm C 40.00mm D 40.00mm E 40.00mm F 51.33mm Weight 1.088000
-
- Description
The standard structural pivot assembly with dual "L" arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two "L" structural pivot arms.
-
Incl. Hardware
Arm to Nub
Series Part Number Qty Description Select Qty / Add To Cart 13-8316 2 M8 x 16.00mm Button Head Socket Cap Screw (BHSCS)
Nub to T-Slot
Series Part Number Qty Description Select Qty / Add To Cart 75-3479 1 Or 2 Bolt Assembly: M8 x 40.00mm Blue SHCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc
-
Sugg. Hardware
Arm to T-Slot
Series Part Number Qty Description Select Qty / Add To Cart 75-3422 4 Bolt Assembly: M8 x 16.00mm Blue BHSCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc
