()40-4030-Lite

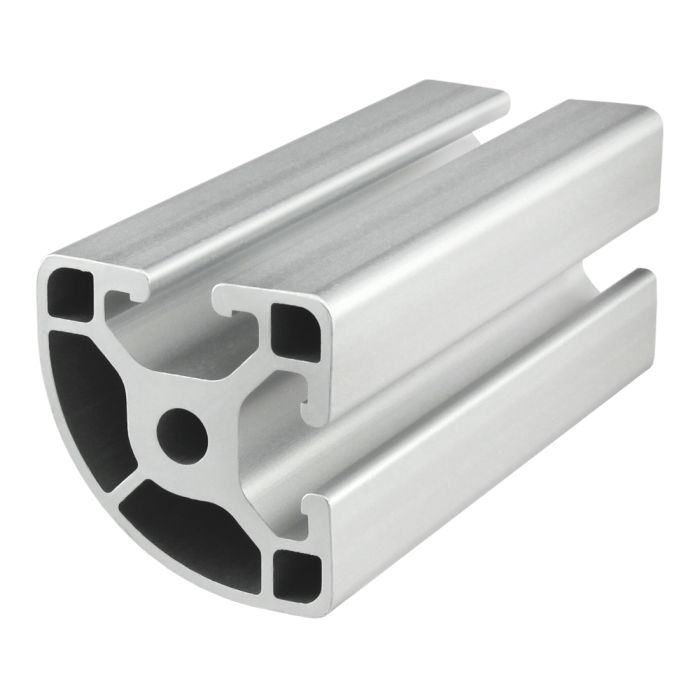

40mm X 40mm Quarter Round Lite T-Slotted Profile - Two Open T-Slots
40mm X 40mm Quarter Round Lite T-Slotted Profile - Two Open T-Slots
40-4030-Lite is a 40mm x 40mm metric 40 series quarter round T-slot profile with a 30mm radius curved back and two open T-slots, one on each of the 40mm profile faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-4030-Lite profile is compatible with 40 series fasteners. This profile lends itself to workstations and displays because panels or other support structures can be easily placed in the T-slots allowing a continuous surface and aesthetic appearance.
Price Per Millimeter
$0.025440-4030-Lite is a 40mm x 40mm metric 40 series quarter round T-slot profile with a 30mm radius curved back and two open T-slots, one on each of the 40mm profile faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-4030-Lite profile is compatible with 40 series fasteners. This profile lends itself to workstations and displays because panels or other support structures can be easily placed in the T-slots allowing a continuous surface and aesthetic appearance.
-
End Taps
-
Counterbores
-
Access Holes
-
Mitercuts
No Applied Machining
- Single Hole End Tap
M10 x 1.50 D x 38.10mm ↧
Price: $3.45 - Single Hole End Tap
M8 x 1.25 D x 31.75mm ↧
Price: $2.79 - Single Hole End Tap
5/16-18 D x 31.75mm ↧
Price: $2.79 - Single Hole End Tap
7/16-14 D x 38.10mm ↧
Price: $3.45 - Single Hole End Tap
3/8-16 D x 38.10mm ↧
Price: $3.45
- .295" D accesshole
40-7050 | Price: $2.79
- 0° to 75° Mitercut
Price: $4.93
See here for details
In stock
Total Price
................................................................................................................................Max Length (inches) | 238.188976 |
Series | 40 Series |
Material | Aluminum |
Grade | 6063-T6 |
Finish | Anodize |
Color | Clear |
Drop Lock | 2° |
Moment of Inertia - IX | 7.5590 cm⁴ |
Moment of Inertia - IY | 7.5590 cm⁴ |
Surface Area | 5.729 Sq cm |
Yield Strength | 172.37 N / Sq mm |
Modulus of Elasticity | 68.947.6 N / Sq mm |
Weight lbs | 0.0866 per inch |
Weight | 0.086600 |
40-4030-Lite is a 40mm x 40mm metric 40 series quarter round T-slot profile with a 30mm radius curved back and two open T-slots, one on each of the 40mm profile faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-4030-Lite profile is compatible with 40 series fasteners. This profile lends itself to workstations and displays because panels or other support structures can be easily placed in the T-slots allowing a continuous surface and aesthetic appearance.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Max Length (inches) 238.188976 Series 40 Series Material Aluminum Grade 6063-T6 Finish Anodize Color Clear Drop Lock 2° Moment of Inertia - IX 7.5590 cm^4 Moment of Inertia - IY 7.5590 cm^4 Surface Area 5.729 Sq cm Yield Strength 172.37 N / Sq mm Modulus of Elasticity 68.947.6 N / Sq mm Weight lbs 0.0866 per inch Weight 0.086600
-
- Description
40-4030-Lite is a 40mm x 40mm metric 40 series quarter round T-slot profile with a 30mm radius curved back and two open T-slots, one on each of the 40mm profile faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-4030-Lite profile is compatible with 40 series fasteners. This profile lends itself to workstations and displays because panels or other support structures can be easily placed in the T-slots allowing a continuous surface and aesthetic appearance.
