40-3897

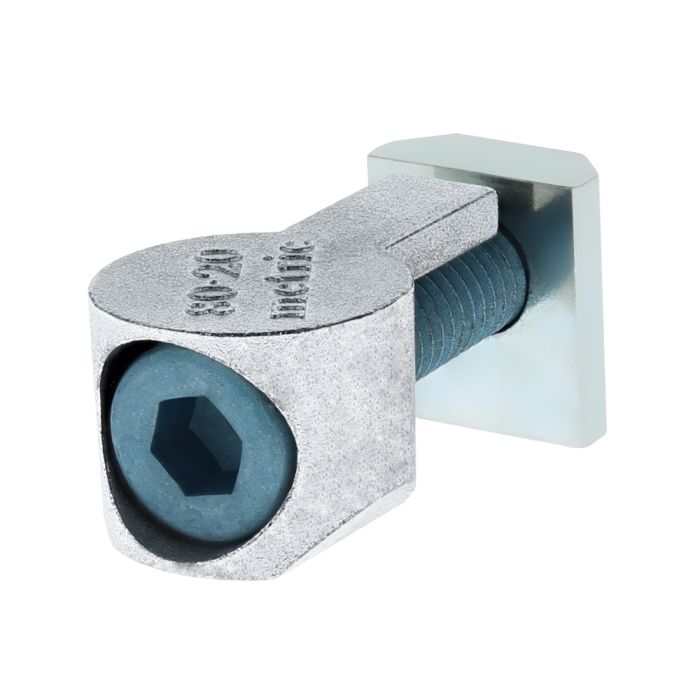

40 Series M8 Standard Anchor Fastener Assembly
40 Series M8 Standard Anchor Fastener Assembly
The standard anchor fastener assembly is comprised of a socket head cap screw, cam, and T-nut. It is one of the strongest internal fastening methods, offering a long-lasting connection. The anchor fastener provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The anchor fastener provides 90 degree, flush, vibration resistant connections, especially convenient where space restrictions apply. This connection method requires a counterbore machining service on the mounting profile. Additional Information: Cams are available separately (without the socket head cap screw and T-nut) for instances where you want to create your own custom assembly.
....................................................................................................................................................................................................................................................
Total Price
$3.25| Series | 40 Series |
| T-Nut | Standard Slide-in |
| Material | Zinc |
| Cam Color | Bright |
| A | 33.00mm |
| B | 7.84mm |
| C | 15.87mm |
| D | 6.35mm |
| E | 19.93mm |
| F | 17.45mm |
| G | 15.97mm |
| H | M8 X 30mm SHCS |
| Weight | 0.099000 |
The standard anchor fastener assembly is comprised of a socket head cap screw, cam, and T-nut. It is one of the strongest internal fastening methods, offering a long-lasting connection. The anchor fastener provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The anchor fastener provides 90 degree, flush, vibration resistant connections, especially convenient where space restrictions apply. This connection method requires a counterbore machining service on the mounting profile. Additional Information: Cams are available separately (without the socket head cap screw and T-nut) for instances where you want to create your own custom assembly.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 40 Series T-Nut Standard Slide-in Material Zinc Cam Color Bright A 33.00mm B 7.84mm C 15.87mm D 6.35mm E 19.93mm F 17.45mm G 15.97mm H M8 X 30mm SHCS Weight 0.099000
-
- Description
- The standard anchor fastener assembly is comprised of a socket head cap screw, cam, and T-nut. It is one of the strongest internal fastening methods, offering a long-lasting connection. The anchor fastener provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The anchor fastener provides 90 degree, flush, vibration resistant connections, especially convenient where space restrictions apply. This connection method requires a counterbore machining service on the mounting profile. Additional Information: Cams are available separately (without the socket head cap screw and T-nut) for instances where you want to create your own custom assembly.
