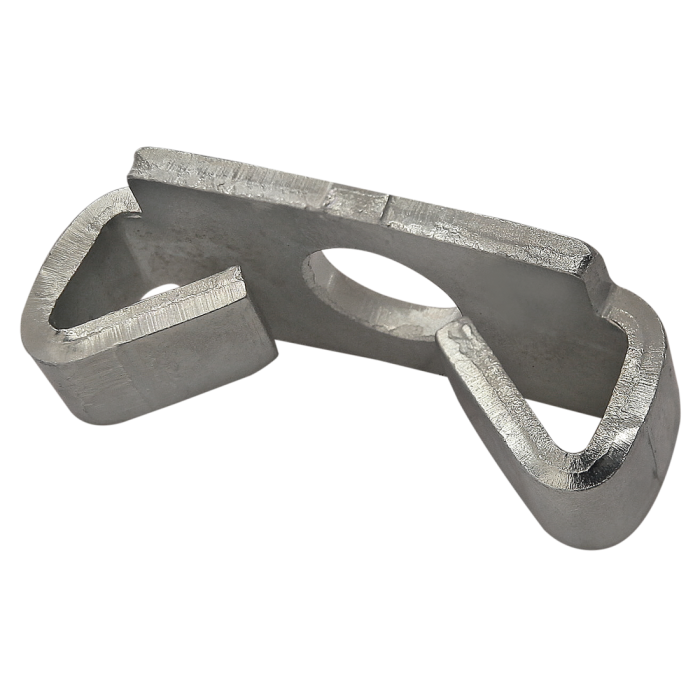

40 Series Standard End Fastener Clip
40 Series Standard End Fastener Clip
The wing clip is commonly used with a button head socket cap screw (PN 17-8325 or PN 13-8325) to create custom end fastener assemblies. The winged tabs of the clip prevent the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
The wing clip is commonly used with a button head socket cap screw (PN 17-8325 or PN 13-8325) to create custom end fastener assemblies. The winged tabs of the clip prevent the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
| ESD Safe | Yes |
| Series | 40 Series |
| Type | Clip |
| Material | Steel |
| Color | Bright |
| A | 15.87mm |
| B | 11.43mm |
| C | 7.62mm |
| D | 8.63mm |
| E | 33.02mm |
| F | 25.40mm |
| G | N/A |
| H | N/A |
| Weight | 0.024000 |
The wing clip is commonly used with a button head socket cap screw (PN 17-8325 or PN 13-8325) to create custom end fastener assemblies. The winged tabs of the clip prevent the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
Product Specs
- Product Details
-
ESD Safe Yes Series 40 Series Type Clip Material Steel Color Bright A 15.87mm B 11.43mm C 7.62mm D 8.63mm E 33.02mm F 25.40mm G N/A H N/A Weight 0.024000
-
- Description
The wing clip is commonly used with a button head socket cap screw (PN 17-8325 or PN 13-8325) to create custom end fastener assemblies. The winged tabs of the clip prevent the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
-
