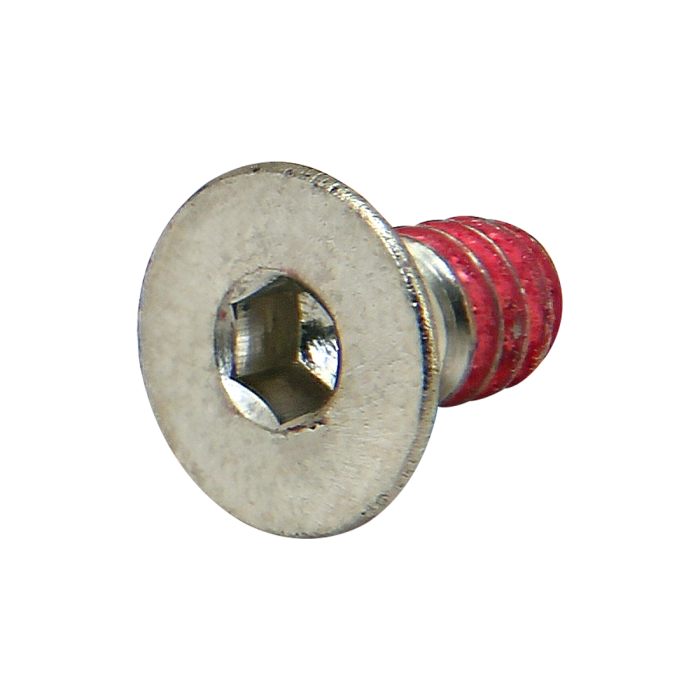

40-3650

Product Specs

• Product Details
  •

    Series	40 Series
    Material	Stainless-Steel
    Finish	Stainless
    Color	N/A
    A	9.78mm
    B	3.18mm
    C	3.23mm
    D (Length)	9.53mm
    E (Thread)	10-24
    Thread Length	Full Thread
    Weight	0.003000
