40-3189

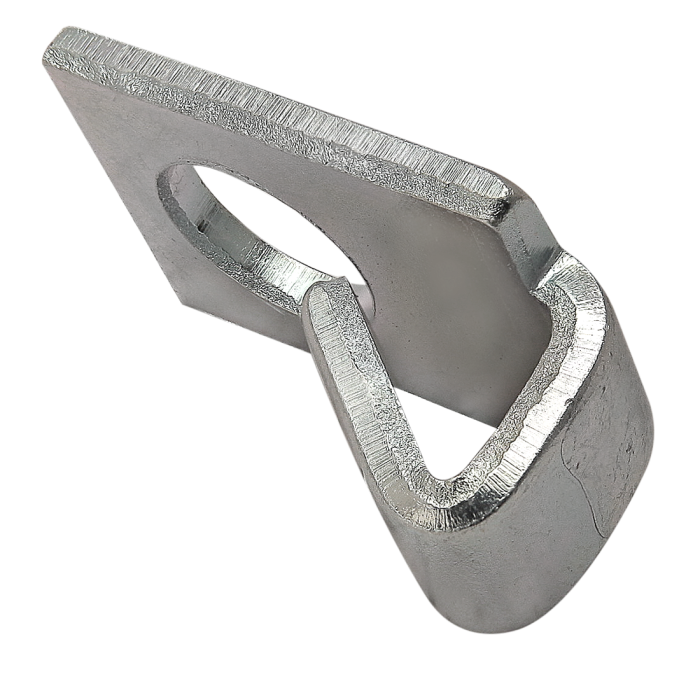

40 Series Single Tab End Fastener Clip
The single tab wing clip is commonly used with a button head socket cap screw (PN 13-8325) to create custom end fastener assemblies. The winged tab of the clip prevents the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
The single tab wing clip is commonly used with a button head socket cap screw (PN 13-8325) to create custom end fastener assemblies. The winged tab of the clip prevents the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
| ESD Safe | Yes |
| Series | 40 Series |
| Type | Clip |
| Material | Steel |
| Color | Bright |
| A | 15.87mm |
| B | 11.43mm |
| C | 7.62mm |
| D | 8.99mm |
| E | 23.26mm |
| F | 19.45mm |
| G | n/a |
| H | n/a |
| Weight | 0.014000 |
The single tab wing clip is commonly used with a button head socket cap screw (PN 13-8325) to create custom end fastener assemblies. The winged tab of the clip prevents the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
Product Specs
- Product Details
-
ESD Safe Yes Series 40 Series Type Clip Material Steel Color Bright A 15.87mm B 11.43mm C 7.62mm D 8.99mm E 23.26mm F 19.45mm G n/a H n/a Weight 0.014000
-
- Description
The single tab wing clip is commonly used with a button head socket cap screw (PN 13-8325) to create custom end fastener assemblies. The winged tab of the clip prevents the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
-
