40-3100
40 Series M8 Short Double Anchor Assembly

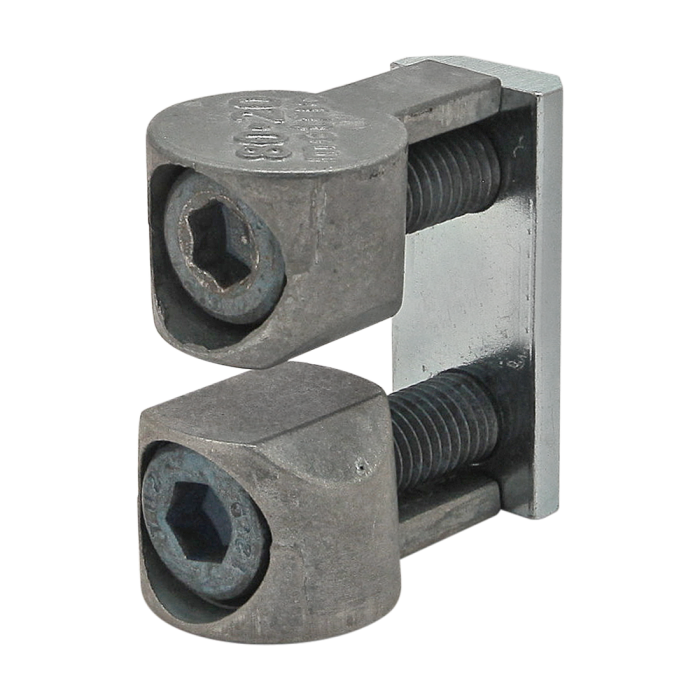

The double anchor fastener assembly is comprised of two socket head cap screws, two cams, and a double T-nut. This design doubles the contact between the fastener and mating profile, making an extremely strong connection. The fastener provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The double anchor fastener provides 90 degree, flush, vibration resistant connections, especially convenient where space restrictions apply and is used for profiles with open T -slots opposite each other. 80/20 recommends the double anchor fastener for non-column loaded supports to add extra strength. This connection method requires a counterbore machining service on the mounting profile. Additional Information: Cams are available separately for instances where you want to create your own custom assembly.
| ESD Safe | Yes |
| Series | 40 Series |
| Profile Size | 40mm |
| Material | Zinc |
| Cam Color | Bright |
| Color | N/A |
| A | 33.00mm |
| B | 7.84mm |
| C | 15.87mm |
| D | 6.35mm |
| E | 19.93mm |
| F | 39.13mm |
| G | 15.97mm |
| H | 38.25mm |
| J | M8 X 30mm SHCS |
| Weight | 0.204000 |
