40-2884

Product Specs

• Product Details
  •

    ESD Safe	No
    Series	25 Series, 30 Series, 40 Series, 45 Series
    Material	Aluminum
    Finish	Textured Powder Coat
    Color	Black
    Process	Extruded
    A	116.00mm
    B	26.00mm
    C	M6
    D	53.00mm
    E	98.00mm
    F	134.00mm
    Weight	0.350000

• Description

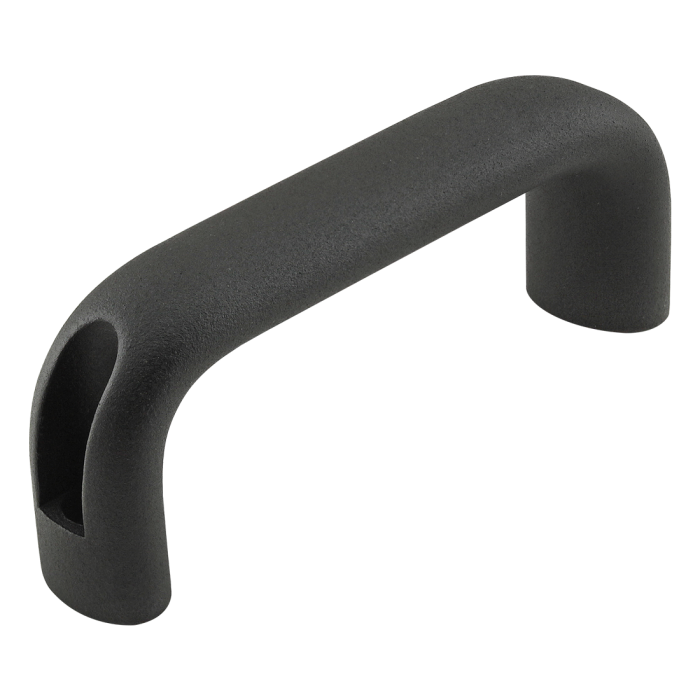

  • The aluminum door handle has a rigid design that creates a smooth shape and durable finish. It is corrosion-resistant, lending itself to both indoor and outdoor applications. It is available in black or natural mill finish and mounts directly to a T-slot profile.
• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	11-6518	2	M6 x 18.00mm Socket Head Cap Screw (SHCS)
    	25-1961	2	M6 Slide-in Economy T-Nut - Centered Thread
    	11-6520	2	M6 x 20.00mm Socket Head Cap Screw (SHCS)
    	40-1961	2	M6 Slide-in Economy T-Nut - Centered Thread
    	11-6520	2	M6 x 20.00mm Socket Head Cap Screw (SHCS)
    	13129	2	45 Series M6 Standard Drop-in T-Nut
