40-2765

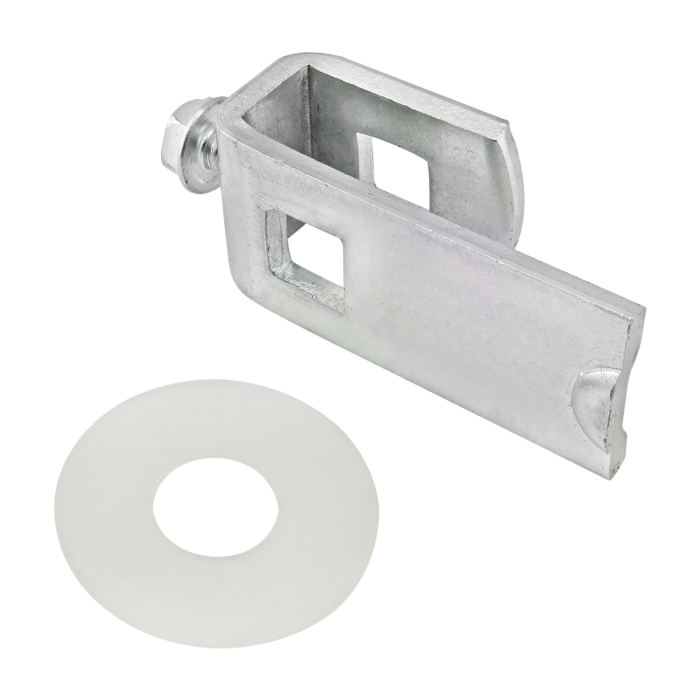

40 Series Furniture Style Handle Pawl Kit
40 Series Furniture Style Handle Pawl Kit
The furniture style handle pawl kit is used to assist in latching a door utilizing a deluxe or furniture style handle. There are options available as a transition between the 10 and 15 series or between the 25 and 40 series. All mounting hardware is included.
....................................................................................................................................................................................................................................................
Price Per Inch
$4.80
....................................................................................................................................................................................................................................................
Total Price
$4.80| Series | 40 Series |
| Material | Steel |
| Grade | Low Carbon |
| Process | Stamping/Blended |
| Finish | Zinc |
| Color | Bright |
| A | 44.45mm |
| B | 12.70mm |
| C | 19.05mm |
| D | 8.13mm |
| E | 25.40mm |
| F | .81mm |
| G | 7.87mm |
| H | 16.56mm |
| J | 1.52mm |
| K | Self Drilling Screw #10 x .500 |
| Weight | 0.0720 |
The furniture style handle pawl kit is used to assist in latching a door utilizing a deluxe or furniture style handle. There are options available as a transition between the 10 and 15 series or between the 25 and 40 series. All mounting hardware is included.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 40 Series Material Steel Grade Low Carbon Process Stamping/Blended Finish Zinc Color Bright A 44.45mm B 12.70mm C 19.05mm D 8.13mm E 25.40mm F .81mm G 7.87mm H 16.56mm J 1.52mm K Self Drilling Screw #10 x .500 Weight 0.0720
-
- Description
- The furniture style handle pawl kit is used to assist in latching a door utilizing a deluxe or furniture style handle. There are options available as a transition between the 10 and 15 series or between the 25 and 40 series. All mounting hardware is included.
