40-2415-Black

Product Specs

• Product Details
  •

    ESD Safe	Yes
    Series	40 Series
    Material	Aluminum
    Grade	6063-T6
    Finish	Anodize
    Color	Black
    Process	Milled
    A	60.00mm
    B	20.00mm
    C	40.00mm
    D	20.00mm
    E	n/a
    F	8.33mm
    G	36.00mm
    H	20.00mm
    J	n/a
    K	13.49mm
    L	8.00mm
    M	28.00mm
    N	6.00mm
    P	140.00mm
    Q	56.00mm
    Weight	0.310000

• Description

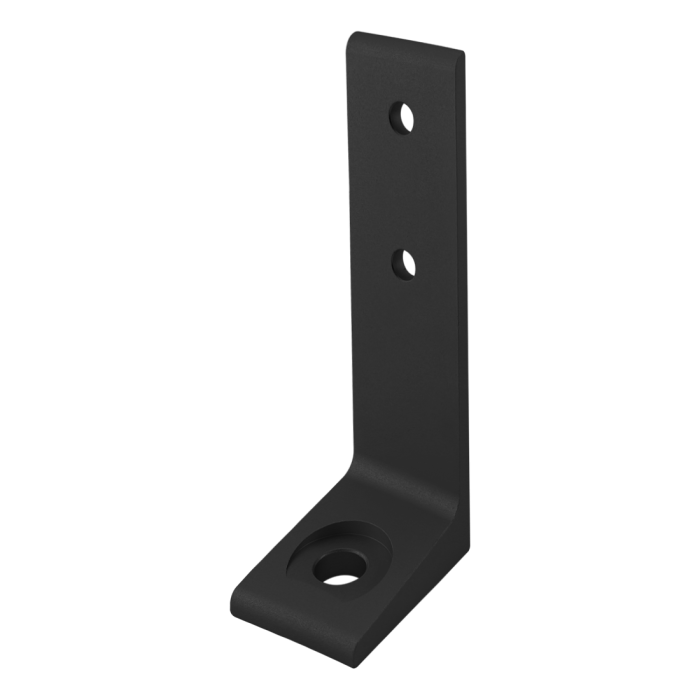

  • The economy floor mount base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts directly to the T-slot to allow vertical adjustments and is designed with countersunk holes to incorporate floor anchors.

• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	75-3500	2 To 6	Bolt Assembly: M8 x 20.00mm Bright Slide-In Flanged Economy T-Slot Stud with Washer and Hex Nut - Bright Zinc
    	75-3422	2 To 6	Bolt Assembly: M8 x 16.00mm Blue BHSCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc
