Product Specs

• Product Details
  •

    Series	40 Series
    Material	Aluminum
    Grade	6105-T5
    Process	Milled
    Finish	Anodize
    Color	Clear
    A	56.56mm
    B	16.17mm
    C	88.90mm
    D	9.45mm
    E	70.00mm
    F	40.00mm
    G	M8 X 1.25
    H	M8 SHCS
    J	24.45mm
    K	19.05mm
    L	88.90mm
    Weight	0.788000

• Description

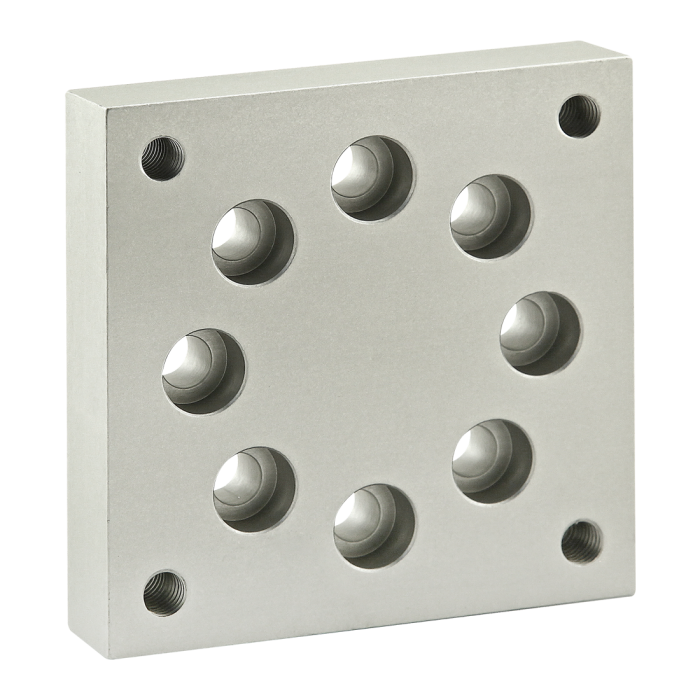

  • The leveling caster base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts to a profile end or side and is commonly used to mount heavy-duty casters for an added layer of strength and durability. It requires a tap to mount to the profile end.
• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description	Select Qty / Add To Cart
    	75-3430	4	Bolt Assembly: M8 x 20.00mm Blue SHCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc

    Mount to Profile End

    Series	Part Number	Qty	Description	Select Qty / Add To Cart
    	13-8525	4	M8 x 25.00mm Socket Head Cap Screw (SHCS)
