40-2210

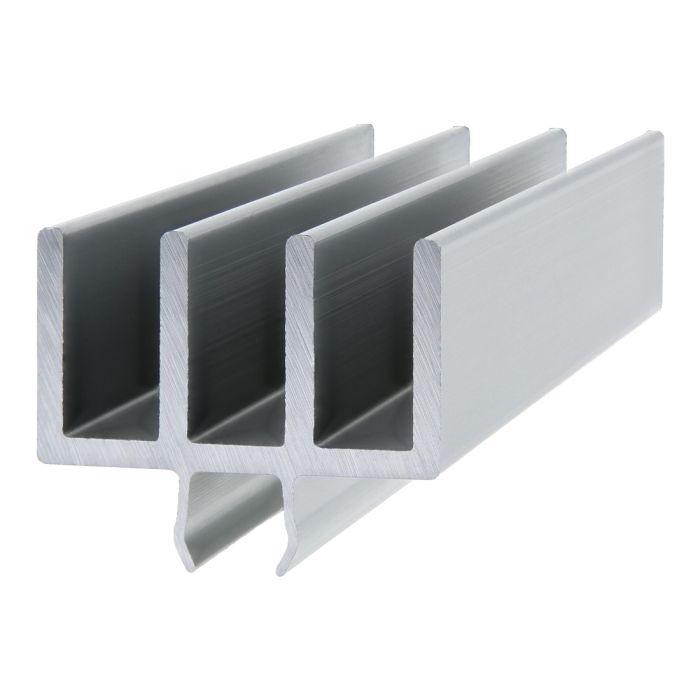

40 Series Upper Door Slide Track
40 Series Upper Door Slide Track
The upper door slide tracks snap into a T-slot with no required hardware. This track is typically used with the lower door slide track to allow panels to be inserted after the frame is assembled. The upper door slide track is 120” (3.048M) and can be cut to length with a standard machining service.
....................................................................................................................................................................................................................................................
Price Per Inch
$0.37
*surcharge of $2.79 per cut
In stock
Total Price
................................................................................................................................| Series | 40 Series |
| Material | Aluminum |
| Grade | 6005A – T61 |
| Process | Extruded |
| Finish | Anodize |
| Color | Clear |
| A | 1.91mm |
| B | 16.51mm |
| C | 6.99mm |
| D | 28.58mm |
| Length | per millimeter |
| Weight | 0.025000 |
| Max Length (inches) | 145.000000 |
The upper door slide tracks snap into a T-slot with no required hardware. This track is typically used with the lower door slide track to allow panels to be inserted after the frame is assembled. The upper door slide track is 120” (3.048M) and can be cut to length with a standard machining service.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Series 40 Series Material Aluminum Grade 6005A – T61 Process Extruded Finish Anodize Color Clear A 1.91mm B 16.51mm C 6.99mm D 28.58mm Length per millimeter Weight 0.025000 Max Length (inches) 145.000000
-
- Description
The upper door slide tracks snap into a T-slot with no required hardware. This track is typically used with the lower door slide track to allow panels to be inserted after the frame is assembled. The upper door slide track is 120” (3.048M) and can be cut to length with a standard machining service.
- CAD Files
-
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
-
