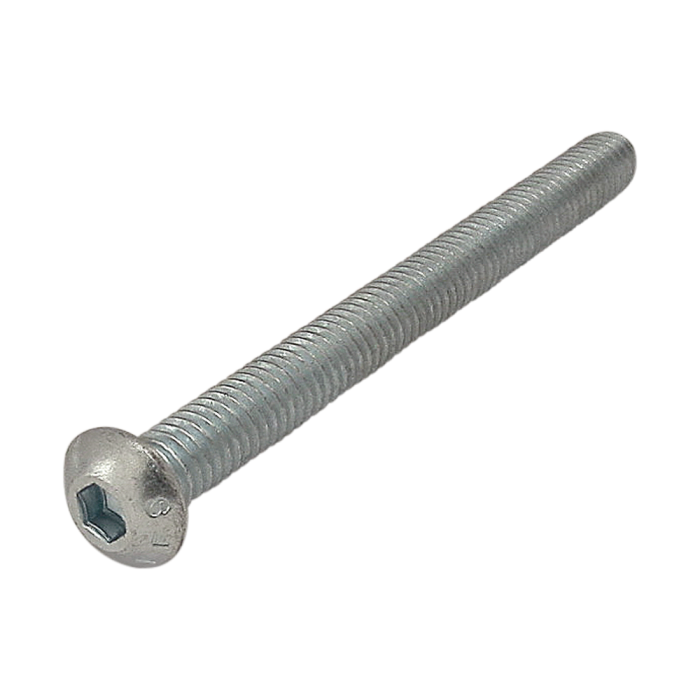

3948

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Bright
    A	.537”
    B	3/16
    C	.159”
    D (Length)	3.500”
    E (Thread)	5/16-18
    Thread Length	Full Thread
    Weight	0.065000
