3900

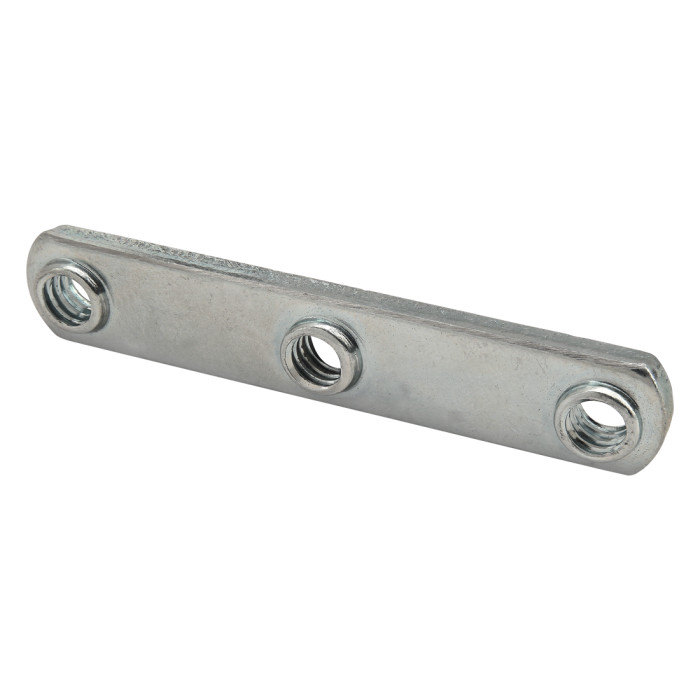

M6 Triple Slide-in Economy T-Nut
M6 Triple Slide-in Economy T-Nut
The triple slide-in economy T-nut is a fastening option that saves time and simplifies the assembly process. It is especially useful for multiple-hole flat plates. This fastener loads from the profile ends and is available with options in size and finish. The pilot thread projection adds additional threading for increased strength. Tip: Position the pilot projection down in the T-slot to avoid an uneven connection or crashing.
The triple slide-in economy T-nut is a fastening option that saves time and simplifies the assembly process. It is especially useful for multiple-hole flat plates. This fastener loads from the profile ends and is available with options in size and finish. The pilot thread projection adds additional threading for increased strength. Tip: Position the pilot projection down in the T-slot to avoid an uneven connection or crashing.
| ESD Safe | Yes |
| Series | 10 Series |
| Material | Steel |
| Grade | 1010 |
| Finish | Zinc |
| Color | Bright |
| A | 2.450" |
| B | 1.000" |
| C | .443" |
| D (Thread) | M6 X 1.0 |
| E | .050" |
| F | .144" |
| Weight | 0.034000 |
The triple slide-in economy T-nut is a fastening option that saves time and simplifies the assembly process. It is especially useful for multiple-hole flat plates. This fastener loads from the profile ends and is available with options in size and finish. The pilot thread projection adds additional threading for increased strength. Tip: Position the pilot projection down in the T-slot to avoid an uneven connection or crashing.
Product Specs
- Product Details
-
ESD Safe Yes Series 10 Series Material Steel Grade 1010 Finish Zinc Color Bright A 2.450" B 1.000" C .443" D (Thread) M6 X 1.0 E .050" F .144" Weight 0.034000
-
- Description
The triple slide-in economy T-nut is a fastening option that saves time and simplifies the assembly process. It is especially useful for multiple-hole flat plates. This fastener loads from the profile ends and is available with options in size and finish. The pilot thread projection adds additional threading for increased strength. Tip: Position the pilot projection down in the T-slot to avoid an uneven connection or crashing.
-
