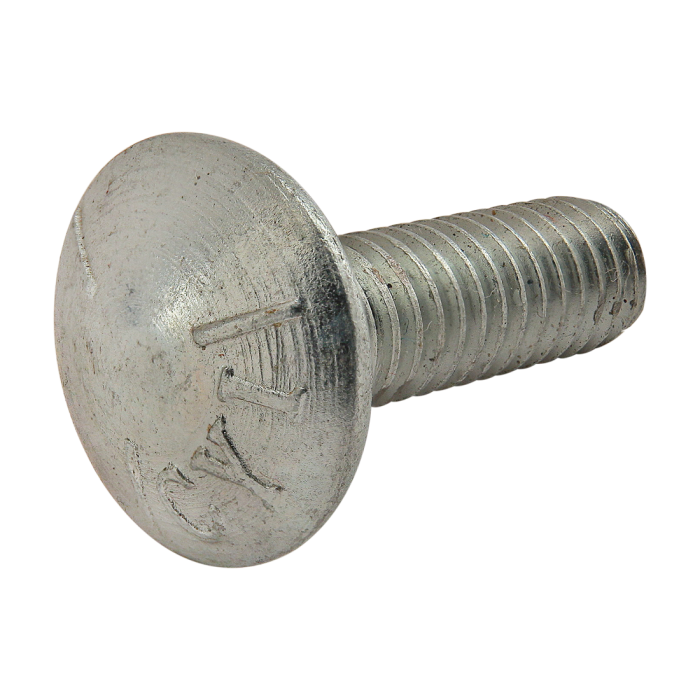

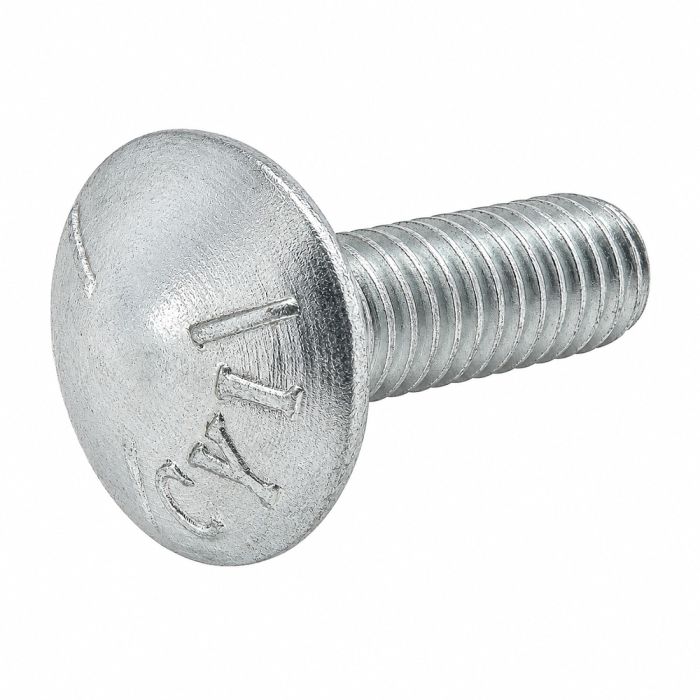

3720

Product Specs

• Product Details
  •

    Series	15 Series
    Material	Steel
    Finish	Zinc
    Color	Bright
    A	1.160"
    B	.160"
    C (Thread)	5/16-18
    D (Length)	1.000"
    E	.695"
    F	.310"
    Weight	0.029000
