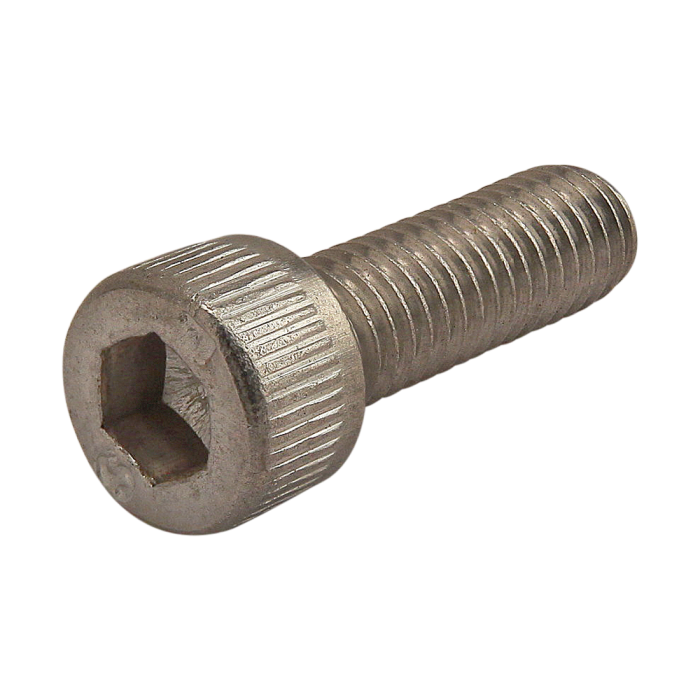

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Stainless-Steel
    Finish	Stainless
    Color	N/A
    A	.308"
    B	5/32
    C	.188"
    D (Length)	.625"
    E (Thread)	10-32
    Thread Length	Full Thread
    Weight	0.007000
