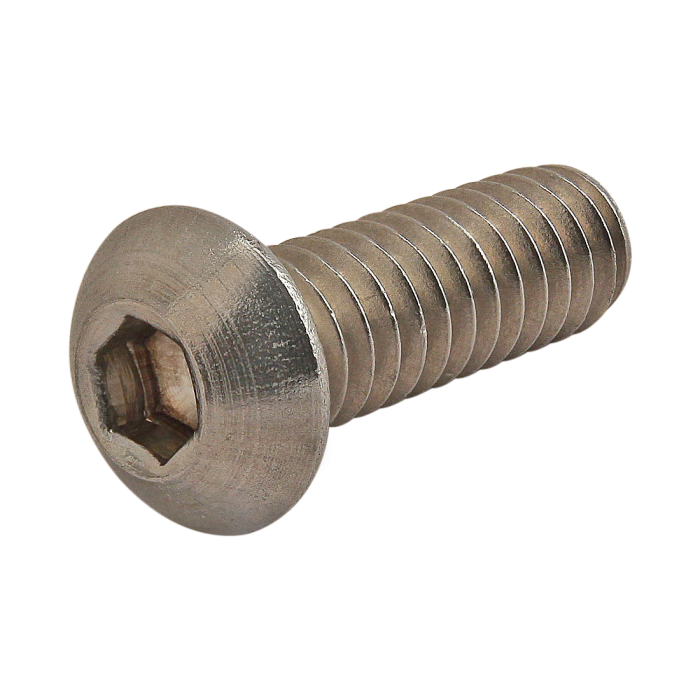

3692

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Stainless-Steel
    Finish	Stainless
    Color	N/A
    A	.428”
    B	5/32
    C	.127”
    D (Length)	.750”
    E (Thread)	1/4-20
    Thread Length	Full Thread
    Weight	0.010000
