Product Specs

• Product Details
  •

    Series	Fractional
    Material	Stainless-Steel
    Finish	Stainless
    Color	N/A

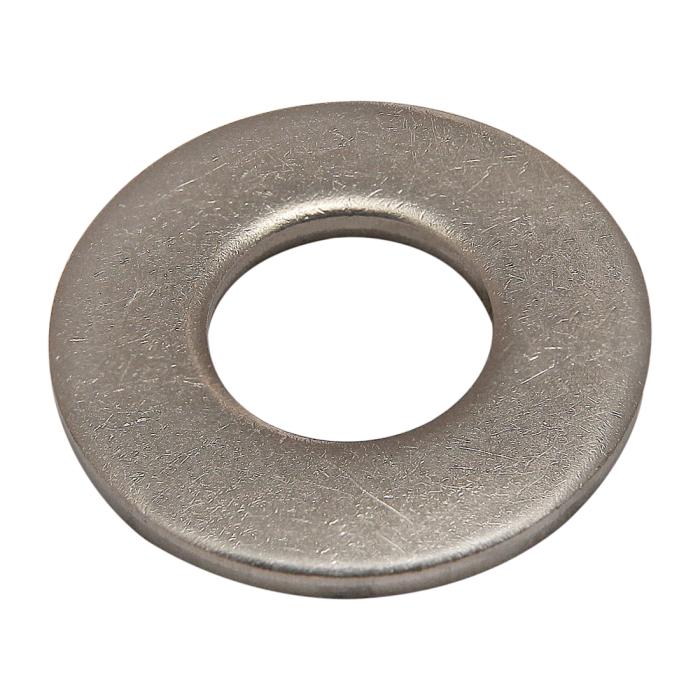

    Type	SAE Flat
    Mfg Standard	ANSI B18.22.1
    A	.625"
    B	.286"
    C	.066"
    Weight	0.004400
