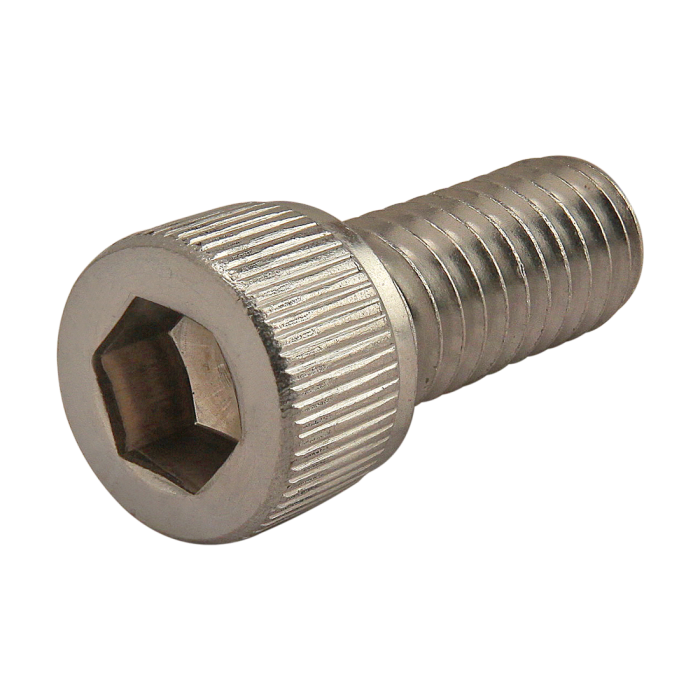

3615

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Stainless-Steel
    Finish	Stainless
    Color	N/A
    A	.463"
    B	1/4
    C	.309"
    D (Length)	.750"
    E (Thread)	5/16-18
    Thread Length	Full Thread
    Weight	0.023000
