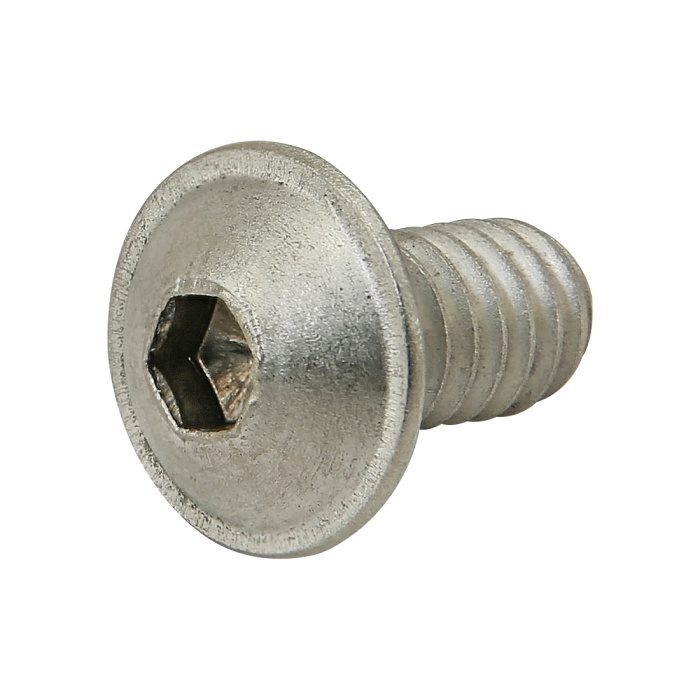

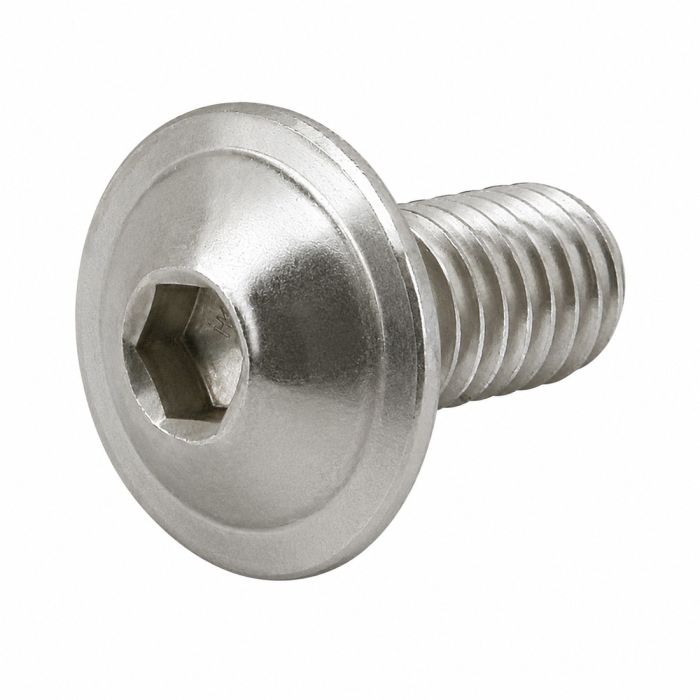

3603

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Stainless-Steel
    Finish	Stainless
    Color	N/A
    A	.560"
    B	5/32
    C	.132"
    D (Length)	.500"
    E	.046"
    F (Thread)	1/4-20
    Thread Length	Full Thread
    Weight	0.008000
