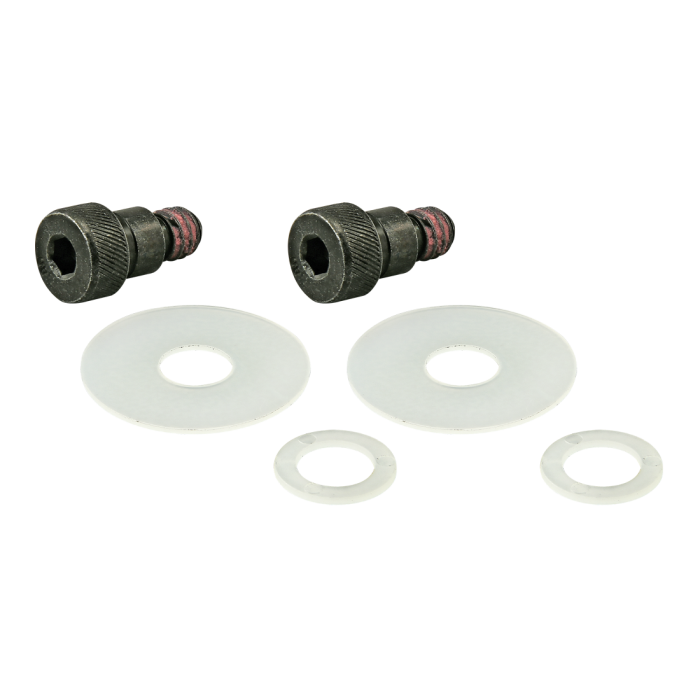

Bolt Assembly: (2) 5/16 x 1/4” Shoulder Bolt with (2) Small Thrust Washer and (2) Large Thrust Washer
| Series | 10 Series |
| Bolt Material | Steel |
| Bolt Finish | Black Zinc |
| Washer Material | Plastic |
| Washer Finish | White Nylon |
| A | 1.000" |
| B | .435" |
| C | .759" |
| D | .246" |
| E (Thread) | 1/4-20 |
| Weight | 0.073000 |
