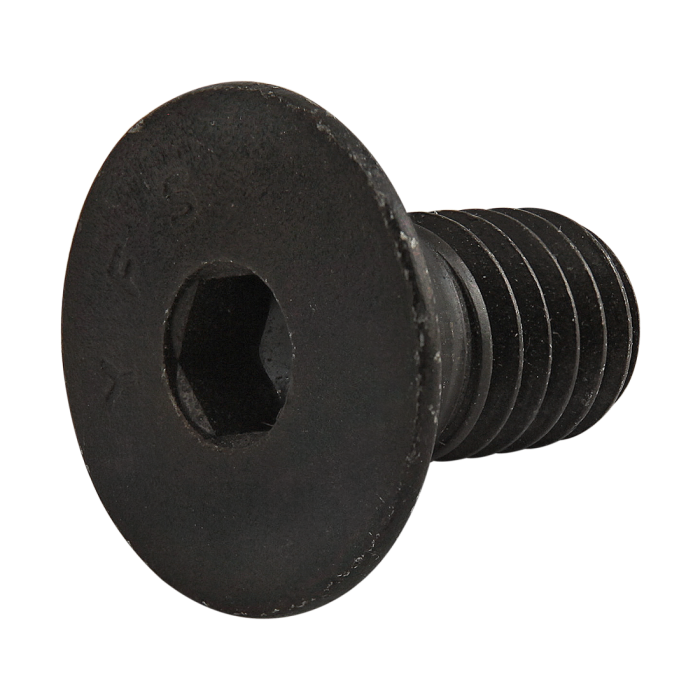

3420

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Black
    A	.751"
    B	7/32
    C	.234”
    D (Length)	.750”
    E (Thread)	3/8-16
    Thread Length	Full Thread
    Weight	0.028000
