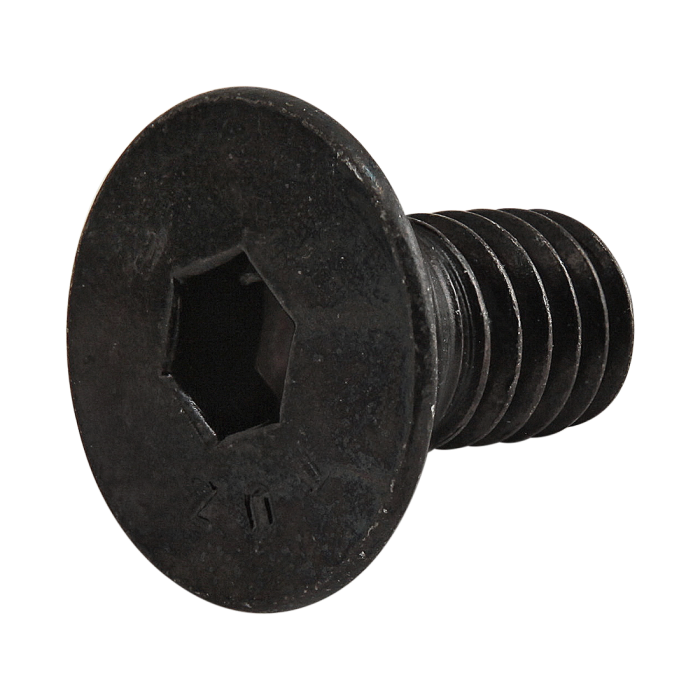

3410

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Black
    A	.628”
    B	3/16
    C	.198”
    D (Length)	.625”
    E (Thread)	5/16-18
    Thread Length	Full Thread
    Weight	0.017000
