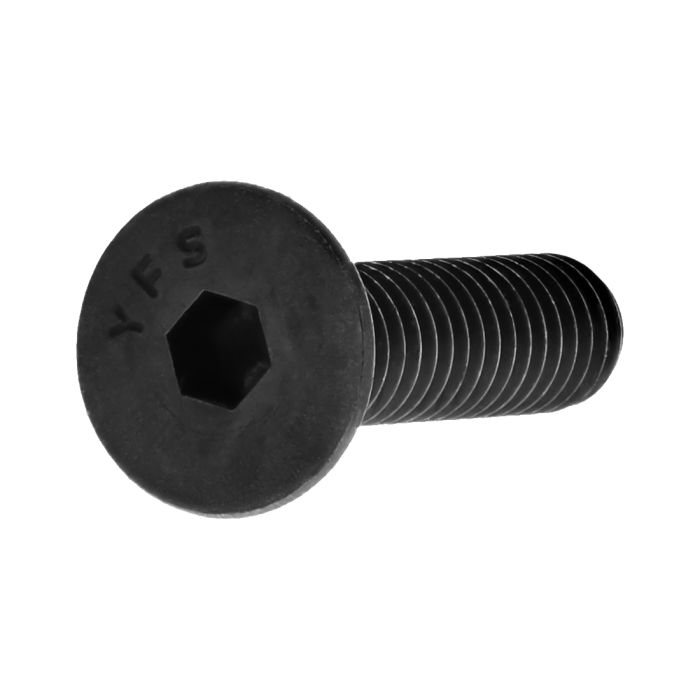

3402

Product Specs

• Product Details
  •

    Series	Fractional
    Material	STeel
    Finish	Zinc
    Color	Black
    A	0.506"
    B	5/32
    C	0.161"
    D (Length)	1.125"
    E (Thread)	1/4-20
    Thread Length	Full Thread
    Weight	0.016000

• CAD Files

  • ** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.

    Generate
