3390

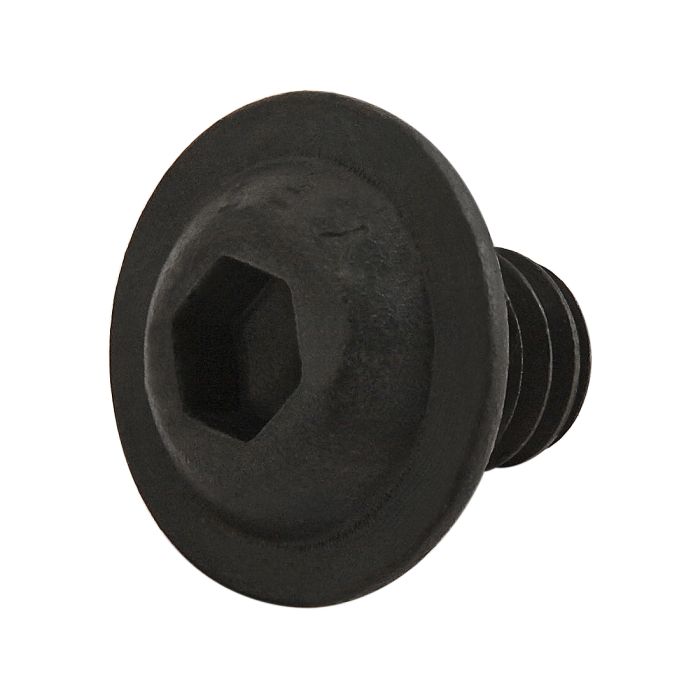

1/4-20 x .375" Flanged Button Head Socket Cap Screw (FBHSCS)
1/4-20 x .375" Flanged Button Head Socket Cap Screw (FBHSCS)
1/4-20 x .375" Flanged Button Head Socket Cap Screw (FBHSCS)
Series | Fractional |
Material | Steel |
Finish | Zinc |
Color | Black |
A | .560" |
B | 5/32 |
C | .132" |
D (Length) | .375” |
E | .046" |
F (Thread) | 1/4-20 |
Thread Length | Full Thread |
Weight | 0.007000 |
