3354

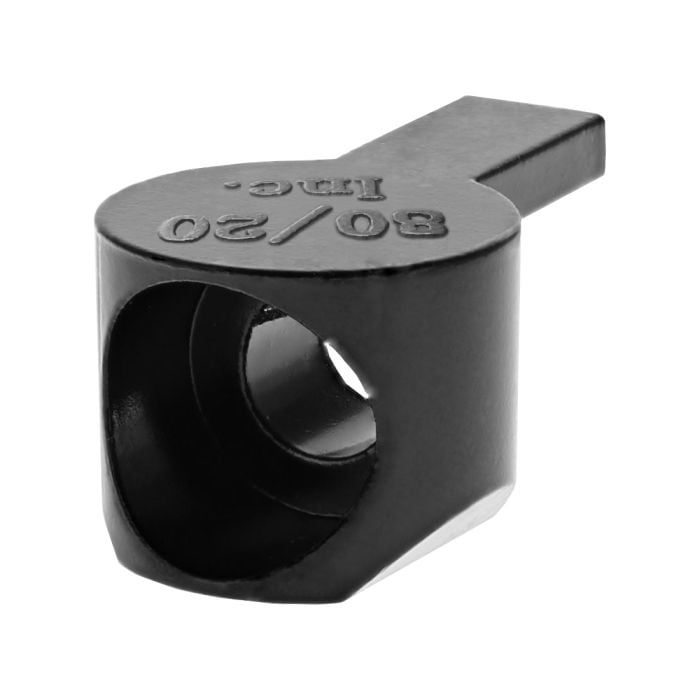

15 Series Black Anchor Fastener Cam Only
15 Series Black Anchor Fastener Cam Only
The anchor fastener cam is commonly used with a socket head cap screw and T-nut to form custom anchor fastener assemblies. An anchor fastener connection method requires a counterbore machining service on the mounting profile.
| ESD Safe | Yes |
| Series | 15 Series |
| Material | Zinc |
| Cam Color | Black |
| A | 1.383” |
| B | .309” |
| C | .810” |
| D | .625" |
| Weight | 0.045000 |
The anchor fastener cam is commonly used with a socket head cap screw and T-nut to form custom anchor fastener assemblies. An anchor fastener connection method requires a counterbore machining service on the mounting profile.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe Yes Series 15 Series Material Zinc Cam Color Black A 1.383” B .309” C .810” D .625" Weight 0.045000
-
- Description
The anchor fastener cam is commonly used with a socket head cap screw and T-nut to form custom anchor fastener assemblies. An anchor fastener connection method requires a counterbore machining service on the mounting profile.
-
