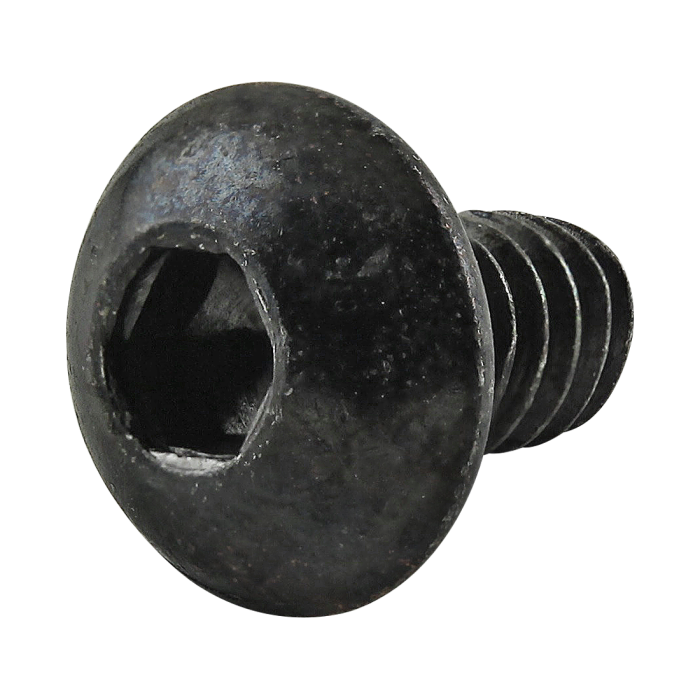

3266

Product Specs

• Product Details
  •

    Series	10 Series
    Material	Steel
    Finish	Zinc
    Color	Black
    A	.428"
    B	.157"
    C	.127"
    D (Length)	.360"
    E (Thread)	12-24
    Weight	0.005000
