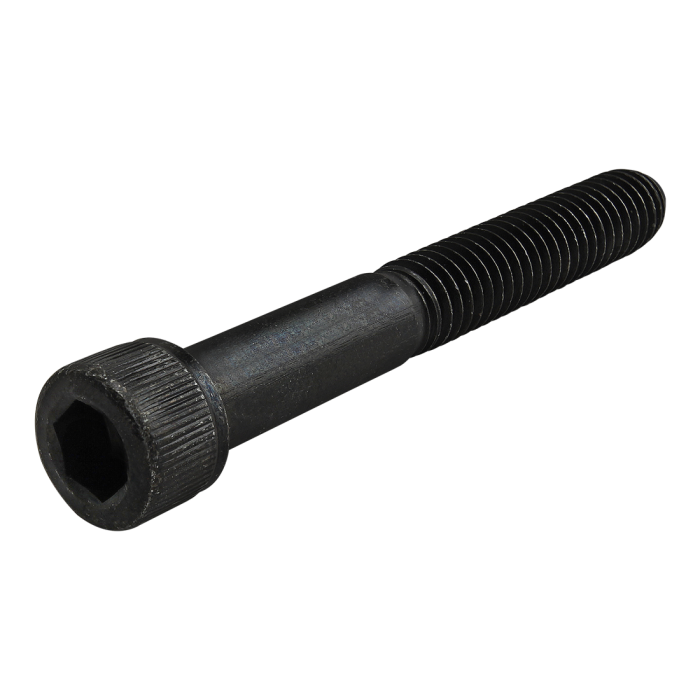

3132

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Black
    A	.463"
    B	1/4
    C	.309"
    D (Length)	2.500"
    E (Thread)	5/16-18
    Thread Length	1.125"
    Weight	0.056000
