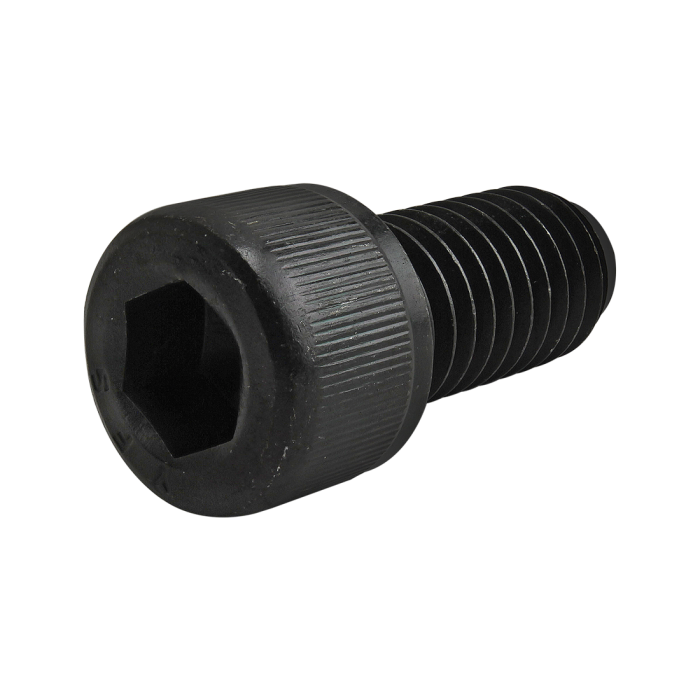

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Black
    A	.743"
    B	3/8
    C	.496"
    D (Length)	1.000"
    E (Thread)	1/2-13
    Thread Length	Full Thread
    Weight	0.091000
