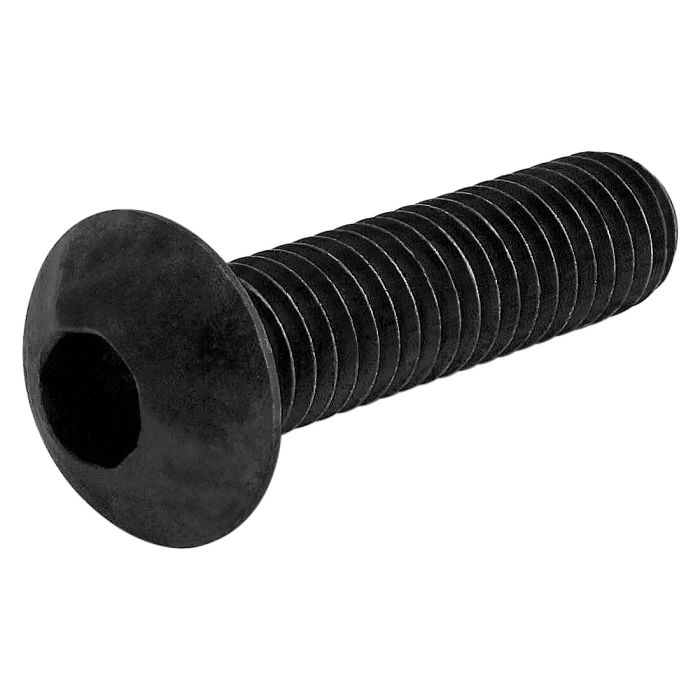

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Black
    A	.354"
    B	1/8
    C	.096”
    D (Length)	.750"
    E (Thread)	10-32
    Thread Length	Full Thread
    Weight	0.006000
