Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Black
    Type	Machine Screw
    Mfg Standard	ANSI/ASME B18.6.3

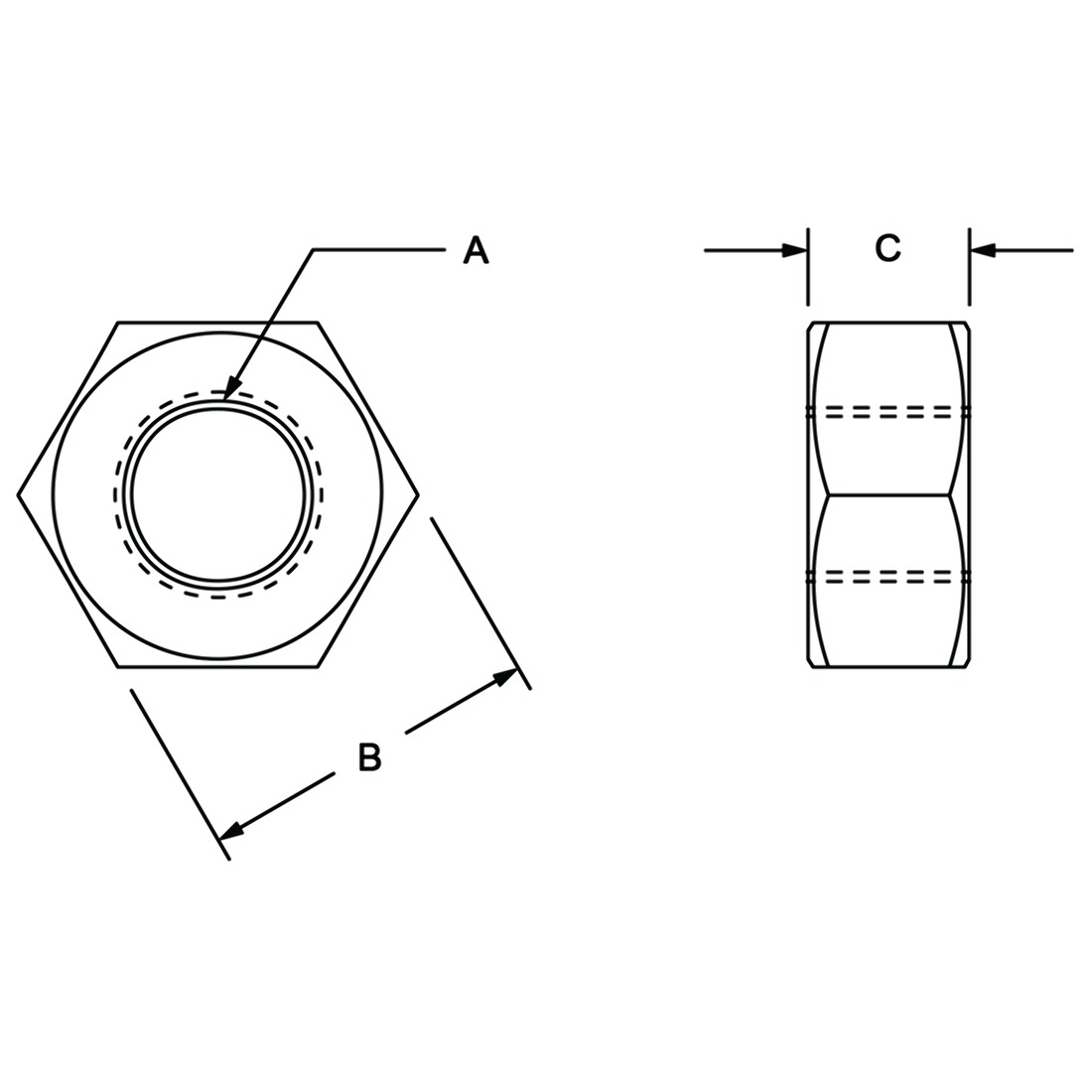

    A (Thread)	10-32
    B	.368"
    C	.123"
    Weight	0.003000
