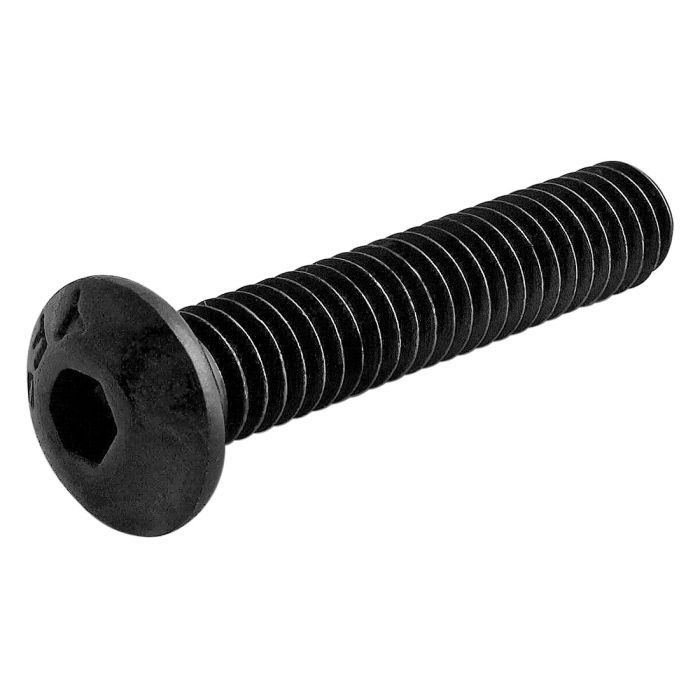

3032

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Black
    A	.305”
    B	3/32
    C	.082”
    D (Length)	.875”
    E (Thread)	8-32
    Thread Length	Full Thread
    Weight	0.005000
