30-3003

Product Specs

• Product Details
  •

    Series	30 Series
    Material	Aluminum
    Grade	6105-T5
    Finish	Anodize
    Color	Clear
    Drop Lock	2°
    Moment of Inertia - IX	2.6832 cm^4
    Moment of Inertia - IY	2.6343 cm^4
    Surface Area	3.065 Sq cm
    Yield Strength	241.1 N / Sq mm
    Modulus of Elasticity	70,326.5 N / Sq mm
    Weight lbs	0.0460 per inch
    Weight	0.0460

• Description

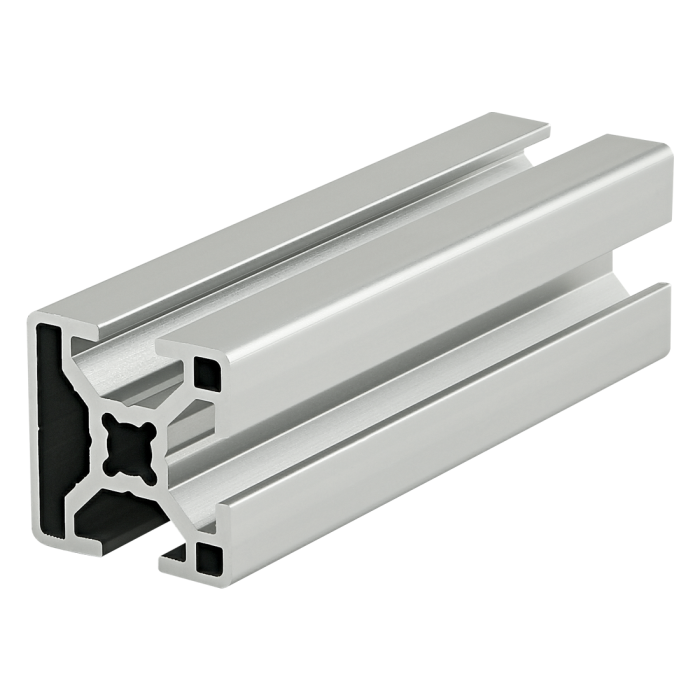

  • 30-3003 is a 30mm x 30mm metric 30 series square T-slot profile with three adjacent open T-slots, one on three 30mm faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 30-3003 profile is compatible with 30 series fasteners. The three closed faces on this profile provide a clean, aesthetic look while also having the capability to mount additional profiles, parts and accessories. It lends itself to furniture, displays, desks, trade show booths, or retail kiosks.

• How To
