10 Series Aluminum Panel Mount Block
10 Series Aluminum Panel Mount Block

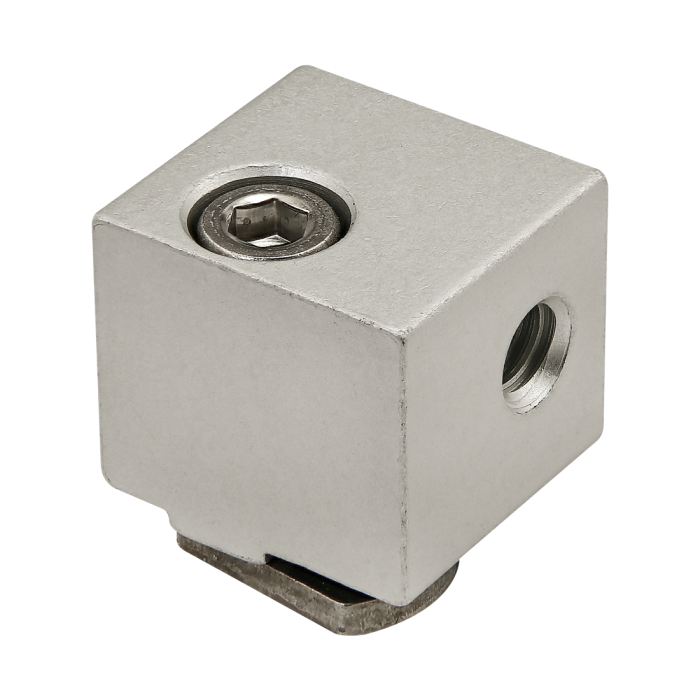

The aluminum panel mount block can be used to mount a panel flush with a profile edge or on the profile surface. There is a slot tab on the block that acts to align the mount in the T-slot. The aluminum panel mount block increases stability of the mounted panel while also reducing vibration. It is easy to use and simplifies the process of adding or removing plastic panels. The hardware to mount the block to the T-slot is included while the hardware to mount the panel to the block should be based on the panel type and thickness.
....................................................................................................................................................................................................................................................
Price Per Inch
$6.05
....................................................................................................................................................................................................................................................
Total Price
$6.05The aluminum panel mount block can be used to mount a panel flush with a profile edge or on the profile surface. There is a slot tab on the block that acts to align the mount in the T-slot. The aluminum panel mount block increases stability of the mounted panel while also reducing vibration. It is easy to use and simplifies the process of adding or removing plastic panels. The hardware to mount the block to the T-slot is included while the hardware to mount the panel to the block should be based on the panel type and thickness.
| Series | 10 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| A | .345" c-bore .210" deep with .201" thru hole |
| B | .312" |
| C | .225" |
| D | .812" |
| E | .750" |
| F | .750" |
| G | .713" |
| H | 1/4-20 |
| J | .325" |
| K | .250" |
| L | .240" |
| M | .050" |
| N | .960" |
| Weight | 0.0480 |
The aluminum panel mount block can be used to mount a panel flush with a profile edge or on the profile surface. There is a slot tab on the block that acts to align the mount in the T-slot. The aluminum panel mount block increases stability of the mounted panel while also reducing vibration. It is easy to use and simplifies the process of adding or removing plastic panels. The hardware to mount the block to the T-slot is included while the hardware to mount the panel to the block should be based on the panel type and thickness.
Mount to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 3685 | 1 | 10-32 x .750" Socket Head Cap Screw (SHCS) | |
| 3676 | 1 | 10-32 Slide-in Economy T-Nut - Offset Thread |
Mount to Panel
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
| 3063 | 1 | 1/4-20 x .625" Button Head Socket Cap Screw (BHSCS) | |
| 3065 | 1 | 1/4-20 x .750" Button Head Socket Cap Screw (BHSCS) |
