15 Series Furniture Style Handle Pawl Kit
15 Series Furniture Style Handle Pawl Kit

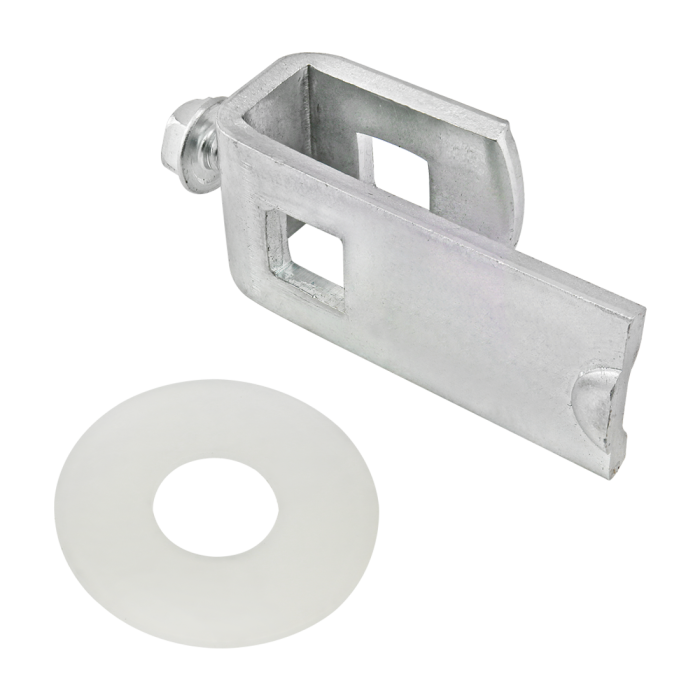

The furniture style handle pawl kit is used to assist in latching a door utilizing a deluxe or furniture style handle. There are options available as a transition between the 10 and 15 series or between the 25 and 40 series. All mounting hardware is included.
| ESD Safe | No |
| Series | 15 Series |
| Material | Steel |
| Grade | Low Carbon |
| Process | Stamping/Blended |
| Finish | Zinc |
| Color | Bright |
| A | 1.750" |
| B | .500" |
| C | .750" |
| D | .320" |
| E | 1.000" |
| F | .032" |
| G | .310" |
| H | .652" |
| J | .060" |
| K | Self Drilling Screw #10 x .500 |
| Weight | 0.086000 |
The furniture style handle pawl kit is used to assist in latching a door utilizing a deluxe or furniture style handle. There are options available as a transition between the 10 and 15 series or between the 25 and 40 series. All mounting hardware is included.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe No Series 15 Series Material Steel Grade Low Carbon Process Stamping/Blended Finish Zinc Color Bright A 1.750" B .500" C .750" D .320" E 1.000" F .032" G .310" H .652" J .060" K Self Drilling Screw #10 x .500 Weight 0.086000
-
- Description
The furniture style handle pawl kit is used to assist in latching a door utilizing a deluxe or furniture style handle. There are options available as a transition between the 10 and 15 series or between the 25 and 40 series. All mounting hardware is included.
-
