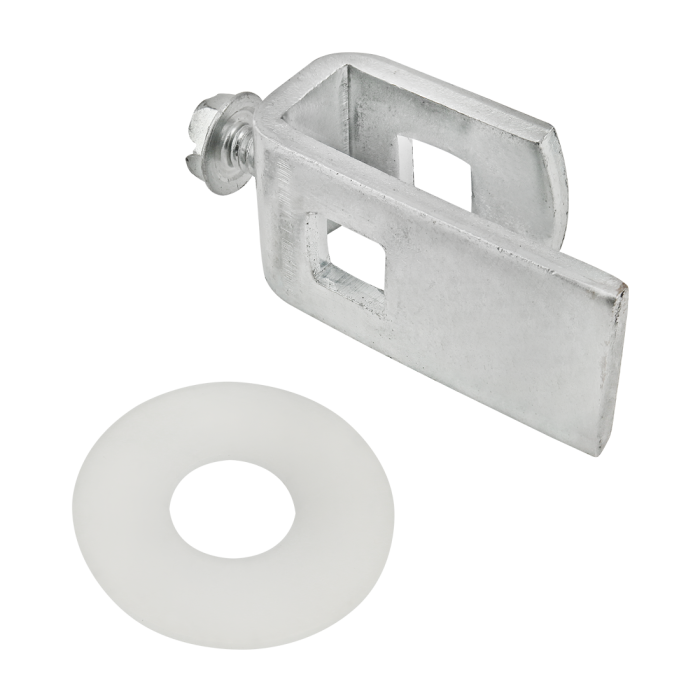

10 to 15 Series Furniture Style Handle Pawl Kit
10 to 15 Series Furniture Style Handle Pawl Kit
The furniture style handle pawl kit is used to assist in latching a door utilizing a deluxe or furniture style handle. There are options available as a transition between the 10 and 15 series or between the 25 and 40 series. All mounting hardware is included.
| ESD Safe | No |
| Series | 10 Series to 15 Series |
| Material | Steel |
| Grade | Low Carbon |
| Process | Stamping/Blended |
| Finish | Zinc |
| Color | Bright |
| A | 1.500" |
| B | .500" |
| C | .750" |
| D | .320" |
| E | 1.000" |
| F | .032" |
| G | .310" |
| H | .652" |
| J | n/a |
| K | Self Drilling Screw #10 x .500 |
| Weight | 0.088000 |
The furniture style handle pawl kit is used to assist in latching a door utilizing a deluxe or furniture style handle. There are options available as a transition between the 10 and 15 series or between the 25 and 40 series. All mounting hardware is included.
Product Specs
- Product Details
-
ESD Safe No Series 10 Series to 15 Series Material Steel Grade Low Carbon Process Stamping/Blended Finish Zinc Color Bright A 1.500" B .500" C .750" D .320" E 1.000" F .032" G .310" H .652" J n/a K Self Drilling Screw #10 x .500 Weight 0.088000
-
- Description
The furniture style handle pawl kit is used to assist in latching a door utilizing a deluxe or furniture style handle. There are options available as a transition between the 10 and 15 series or between the 25 and 40 series. All mounting hardware is included.
-
