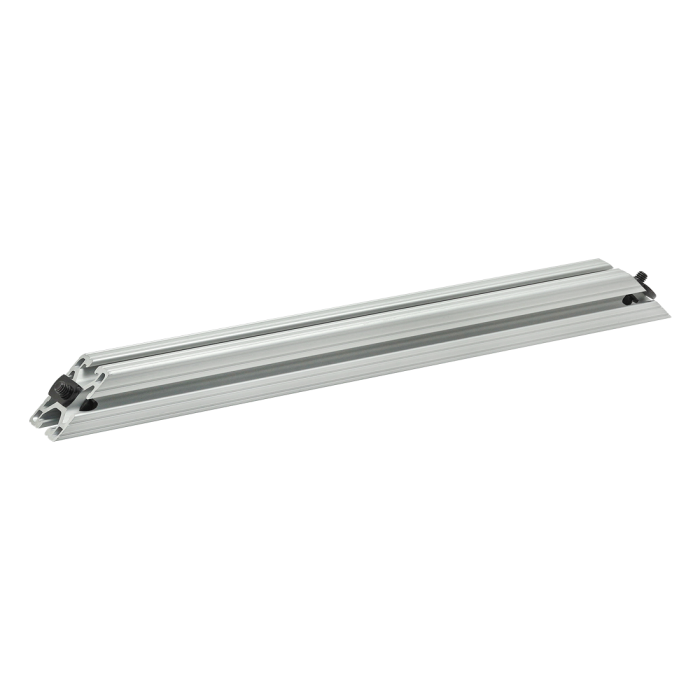

1515-Lite 45 Degree Support, 18" Long
1515-Lite 45 Degree Support, 18" Long
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
Total Price
................................................................................................................................| Series | 15 Series |
| Profile | 1515-Lite |
| A | 1.500” |
| B | 1.500” |
| C | 18.000” |
| Weight | 1.702000 |
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3112 | 2 | 5/16-18 x .750" Socket Head Cap Screw (SHCS) |
 | 3278 | 2 | 5/16-18 Slide-in Economy T-Nut - Offset Thread |
| 3260 | 2 | .349" ID Washer |
Product Specs
- Product Details
-
Series 15 Series Profile 1515-Lite A 1.500” B 1.500” C 18.000” Weight 1.702000
-
- Description
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
-
Incl. Hardware
Mount to T-Slot
Series Part Number Qty Description 3112 2 5/16-18 x .750" Socket Head Cap Screw (SHCS)
3278 2 5/16-18 Slide-in Economy T-Nut - Offset Thread
3260 2 .349" ID Washer
