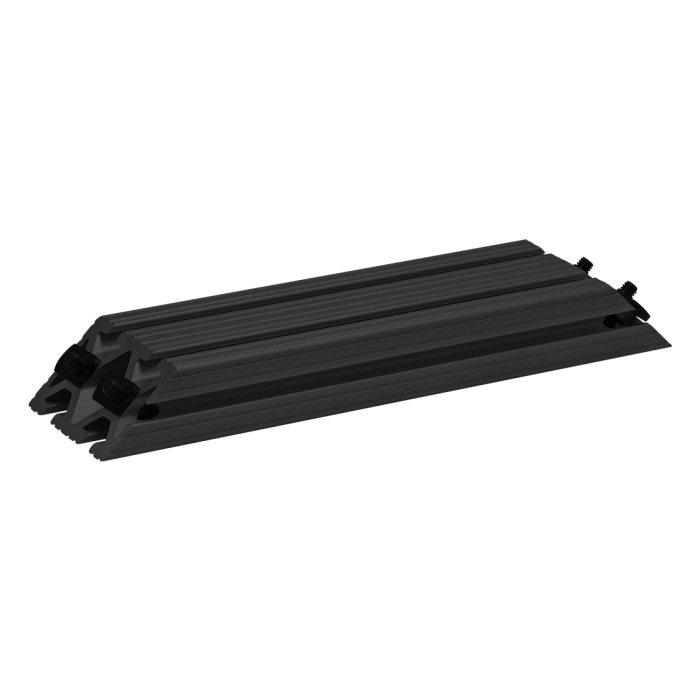

The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
This item requires a longer lead time. Please see Black Anodize Orders on the shipping schedule for expected lead times.
Need it faster? This similar product has a shorter lead time:
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
Mount to T-Slot
Series
Part Number
Qty
Description
Select Qty / Add To Cart
3112
4
5/16-18 x .750" Socket Head Cap Screw (SHCS)
3278
4
5/16-18 Slide-in Economy T-Nut - Offset Thread
3260
4
.349" ID Washer
